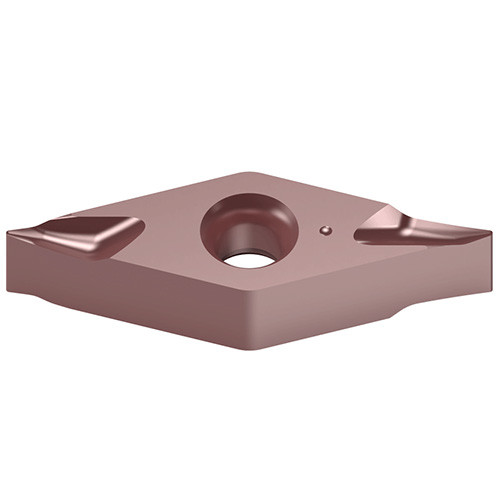

VNGX 130401 ST-R-F TT9020
35° Rhombic RHINOTURN inserts for depth of cut machining
| Applicable Material | | Steel | Stainless Steel | | Grade | TT9020 |
| Application | | Ext 117.5° App 35° Diamond | Ext 72.5° App 35° Diamond | Ext 93° App 35° Diamond | Inserts | Int 100° App 70° Diamond | Int 117.5 App 35° Diamond | Int 95° App 35° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.3 mm |

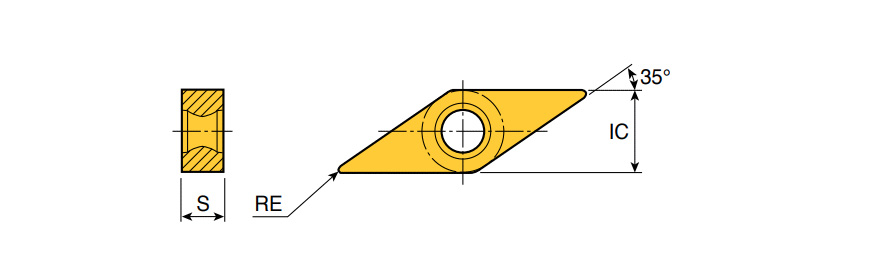

| Corner Radius (RE) | 0.1 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 16.6 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.08 mm/rev |
| Inscribed Circle Diameter (IC) | 7.94 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Unit | M |
Product Features
| Family Description | 35° Rhombic RHINOTURN inserts for depth of cut machining | FamilyName | VNGX-ST (RHINO) |
| Remarks | R: Right hand insert E: Micro honing edge F: Sharp edge | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0091
Name
Turning Indexable Inserts
FamilyName
VNGX-ST (RHINO)
BrandName
Taegutec
