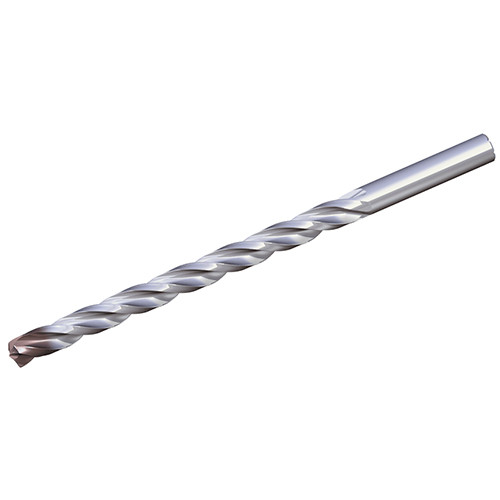

3HD 115-139-12 CI12 TT5130
3 Flute Solid carbide drills with coolant holes for high productivity

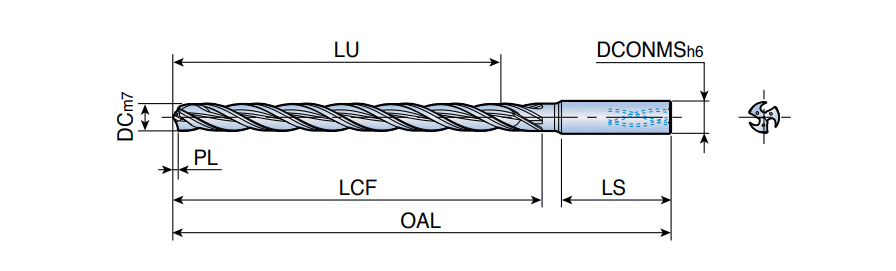

| Drill Bit Size / Cutting Diameter (DC) | 11.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.5 mm | Grade | TT5130 |
| Coating | Multi TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | | Usable Length (LU) | 139 mm |
| Application | | Drilling | Tools for Swiss Machines | | Length Chip Flute (LCF) | 156 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Overall Length (OAL) | 204 mm |
| Point Length (PL) | 2.76 mm | Body Material | Carbide |
| Shank Length (LS) | 45 mm | Unit | M |
Product Features
| Family Description | 3 Flute Solid carbide drills with coolant holes for high productivity | COO | S.KOREA |
Shipping Info
Weight per item
0.1775
