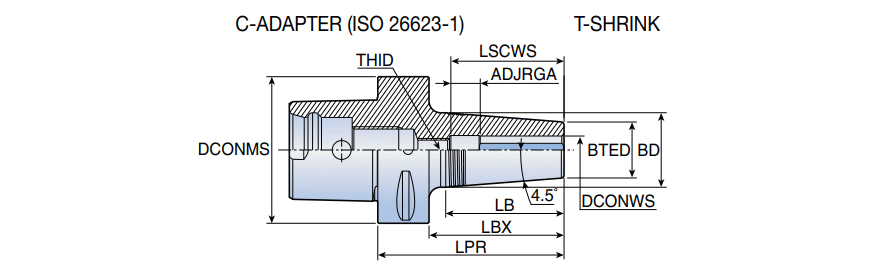

| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Clamping Length Workpiece Side (LSCWS) | 49 mm |
| Shank Size (SS) | 63 mm | Usable Length (LU) | 85 mm |
| Body Length (LB) | 57.2 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 33 mm | Body Material | Steel |
| Application | | ISO 26623 1 C ADAPTER | | Unit | M |
| Thread Designation Inside (THID) | M16 |
Product Features

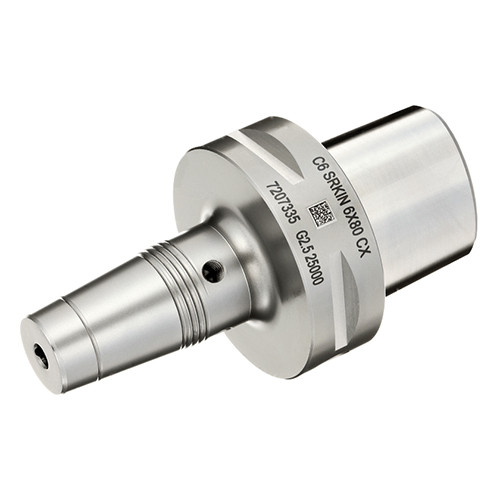

| Family Description | CX coolant type thermal shrinking chucks | FamilyName | C-SRKIN-CX |
| Remarks | Only use inductive heating device for T SHRINK holders | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Shrink Fit Holders
FamilyName
C-SRKIN-CX
BrandName
Taegutec
