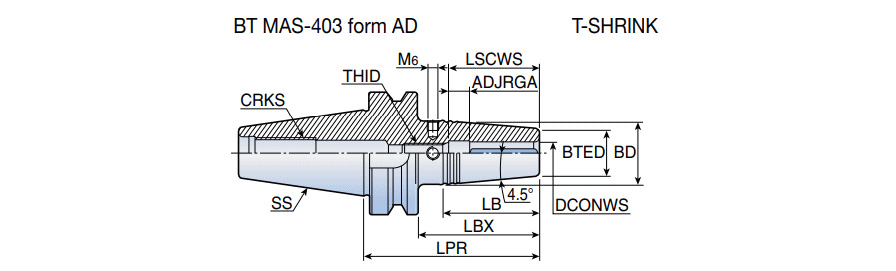

| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Clamping Length Workpiece Side (LSCWS) | 49 mm |
| Shank Size (SS) | 50 mm | Shank Length (LS) | 0 mm |
| Body Length (LB) | 57 mm | Usable Length (LU) | 100 mm |
| Body Diameter_2 (BD_2) | 33 mm | Measurement Type | Metric |
| Application | | BT MAS 403 | | Body Material | Steel |
| Thread Designation Inside (THID) | M16 | Unit | M |
Product Features
| Family Description | CX coolant type thermal shrinking chucks | FamilyName | BT-SRKIN-CX |
| Remarks | Only use inductive heating device for T SHRINK holders | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name

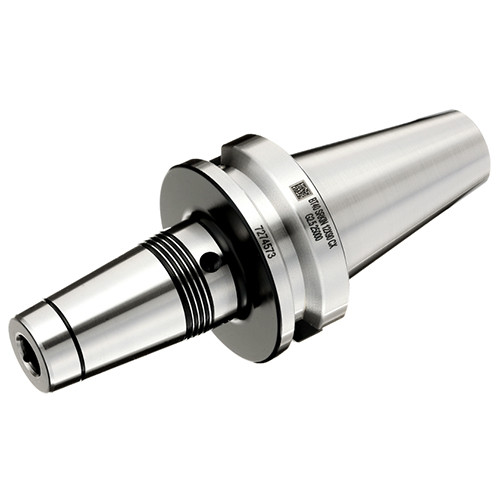

Shrink Fit Holders
FamilyName
BT-SRKIN-CX
BrandName
Taegutec
