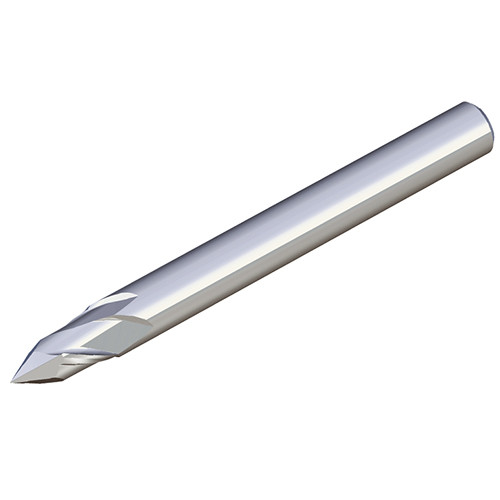

CEM 2200-C60 UF10
2 flute solid carbide end mills for 60° chamfering, countersinking & spot drilling

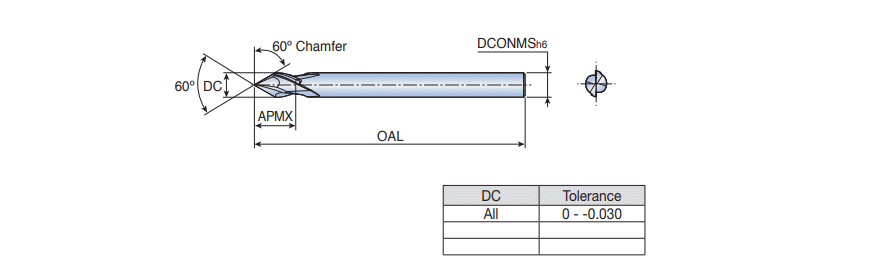

| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | | Cutting Edge Material | Carbide |
| Application | | Chamfer & Serration | Countersinking | Drill Mill | Solid Carbide End Mills | | Coating | Uncoated |
| Cutting Diameter (DC) | 20 mm | Grade | UF10 |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 37.3 mm | Body Material | Carbide |
| Overall Length (OAL) | 150 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
Product Features
| Family Description | 2 flute solid carbide end mills for 60° chamfering, countersinking & spot drilling | FamilyName | CEM 2-C60 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.5925
Name
Chamfer Mills
FamilyName
CEM 2-C60
BrandName
Taegutec
