| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | | Cutting Edge Material | Carbide |
| Application | | Chamfer & Serration | Countersinking | Drill Mill | Solid Carbide End Mills | | Coating | Uncoated |

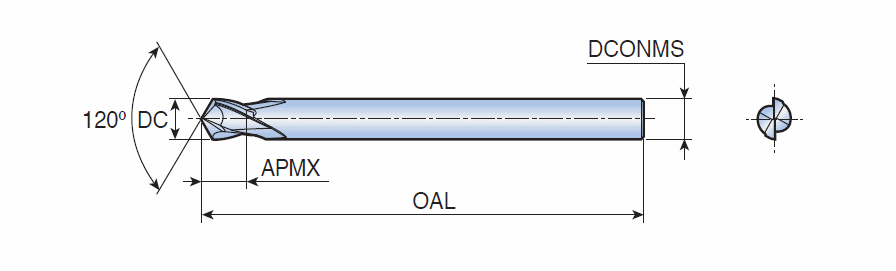

| Cutting Diameter (DC) | 16 mm | Grade | UF10 |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 20.6 mm | Body Material | Carbide |
| Overall Length (OAL) | 125 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
Product Features
| Family Description | 2 flute solid carbide end mills for 30° chamfering, countersinking & spot drilling | FamilyName | CEM 2-C120 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.3510
Name
Chamfer Mills
FamilyName
CEM 2-C120
BrandName
Taegutec
