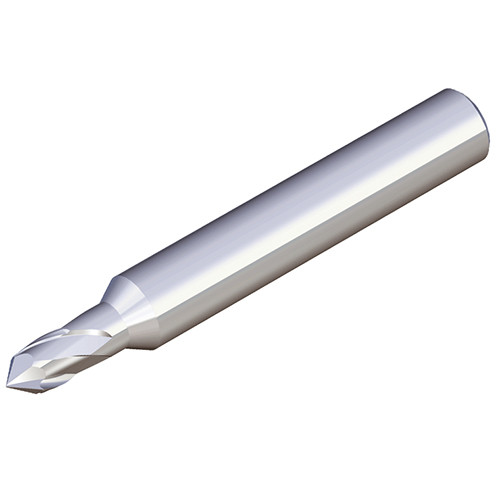

CEM 1016 UF10
2 flute carbide brazed end mills with steel shank for 45° chamfering, countersinking & spot drilling
| Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | | Chamfer & Serration | Countersinking | Drill Mill | Solid Carbide End Mills | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 10 mm | Coating | Uncoated |
| Usable Length (LU) | 26 mm | Grade | UF10 |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 15 mm | Body Material | Carbide |
| Overall Length (OAL) | 115 mm | Unit | M |
Product Features
| Family Description | 2 flute carbide brazed end mills with steel shank for 45° chamfering, countersinking & spot drilling | FamilyName | CEM (Brazed type) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1610
Name
Chamfer Mills
FamilyName
CEM (Brazed type)
BrandName
Taegutec
