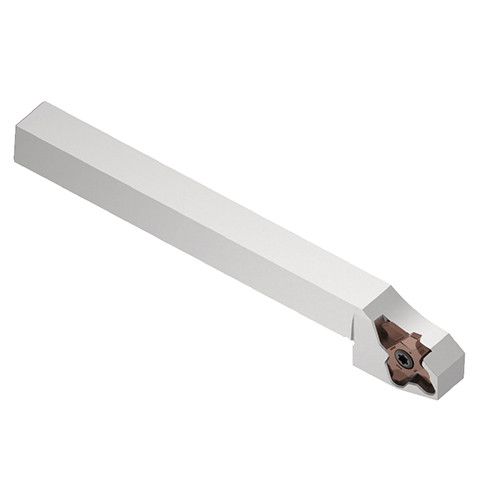

TMY-TQHR 12-20
QUAD-RUSH Y-axis holders with TQ..20-R inserts for external grooving

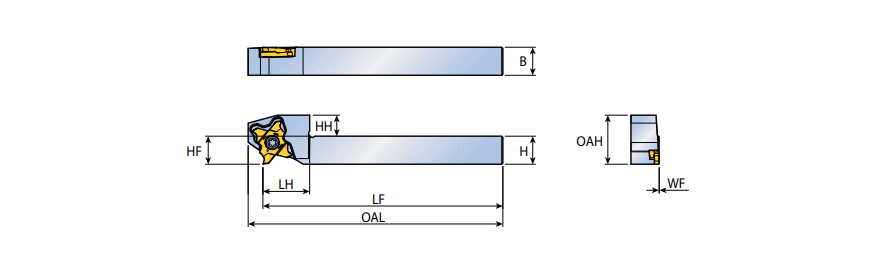

| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 20 |
| Overall Length (OAL) | 131.3 mm | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 20 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 9 | Insert Seat Size Code (SSC) | 20 |
| Overall Height (OAH) | 21 mm | Master Insert Identification (MIID) | TQS 20-2.00-0.10-R |
| Functional Length (LF) | 125 mm | Functional Width (WF) | 0 mm |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Ext. Threading (Groove Turn) | Parting | Tools for Swiss Machines | | Unit | M |
Product Features
| Family Description | QUAD-RUSH Y-axis holders with TQ..20-R inserts for external grooving | FamilyName | TMY-TQHR |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0000
Name
Parting Off Indexable Holders
FamilyName
TMY-TQHR
BrandName
Taegutec
