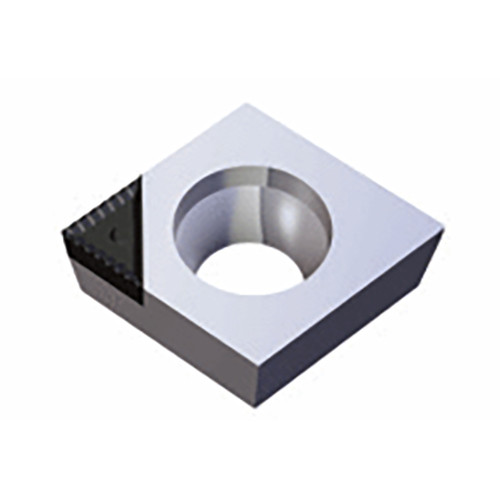

CCGT 120408 CB TD1020
Positive 80° Rhombic inserts with Serrated PCD cutting edge for maximum chip control & low cutting force
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.05 mm |
| Application | | Ext 90° App 80° Diamond | Ext 95° App 80°Diamond | Ext 95° App Sleeve 80° Diamond | Inserts | Int 95° App 80° Diamond | Tools for Swiss Machines | | Depth of Cut Maximum (APMX) | 2 mm |

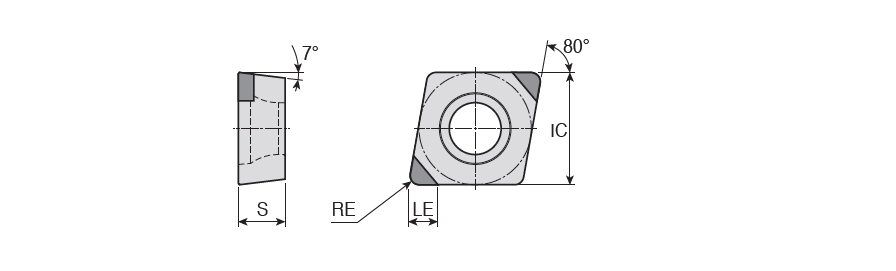

| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 4 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Cutting Edge Material | PCD | Unit | M |
| Grade | TD1020 |
Product Features
| Family Description | Positive 80° Rhombic inserts with Serrated PCD cutting edge for maximum chip control & low cutting force | FamilyName | CCGT-CB(PCD) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0200
Name
Turning Indexable Inserts
FamilyName
CCGT-CB(PCD)
BrandName
Taegutec
