| Application | | Facing | Shouldering | Solid Carbide End Mills | | Grade | TT5523 |

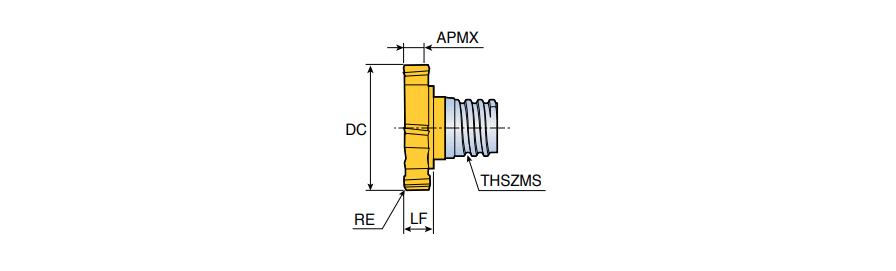

| Cutting Diameter (DC) | 20 mm | Coating | AlTiN |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Protruding Length (LPR) | 6.8 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 6 mm | Unit | M |
| Functional Length (LF) | 6.8 mm |
Product Features

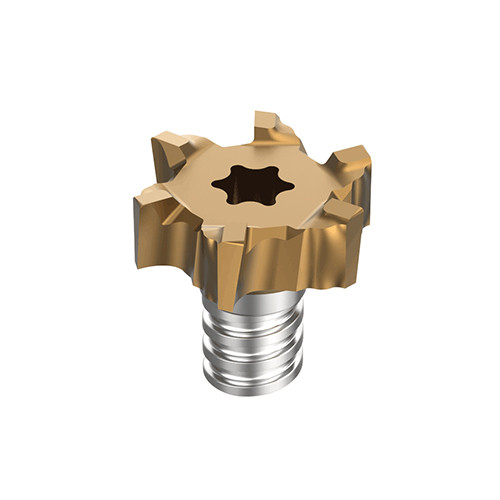

| Family Description | 6 flute, for face milling | FamilyName | MXFM-I06 |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0710
Name
Solid End Mill Heads
FamilyName
MXFM-I06
BrandName
Taegutec
