| Application | | Chamfer & Serration | Drill Mill | Solid Carbide End Mills | | Grade | TT5523 |

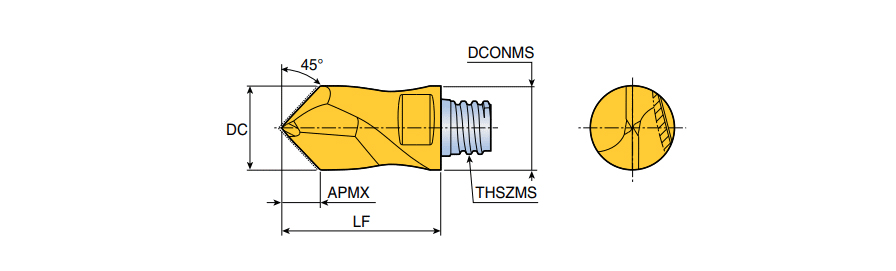

| Cutting Diameter (DC) | 12 mm | Coating | AlTiN |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Protruding Length (LPR) | 23 mm |
| Depth of Cut Maximum (APMX) | 5.4 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm | Unit | M |
| Functional Length (LF) | 23 mm |
Product Features

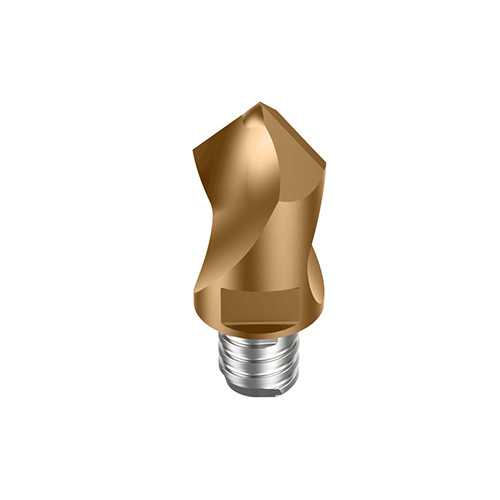

| Family Description | 2 flute, for spot drill & chamfer | FamilyName | MXDS-02 |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0570
Name
Solid End Mill Heads
FamilyName
MXDS-02
BrandName
Taegutec
