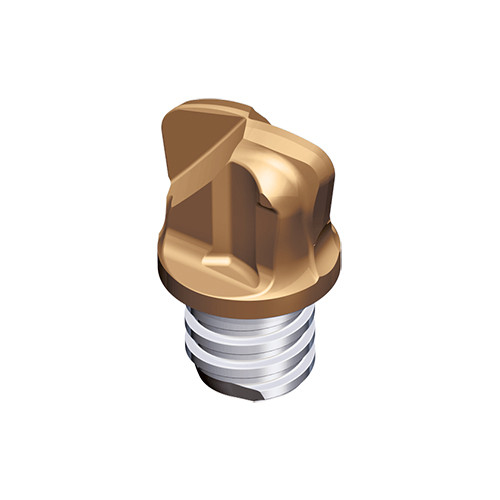

MXFX200L1.5R34-02S12 TT5523
Interchangeable solid carbide High Feed mill heads with 2 flute

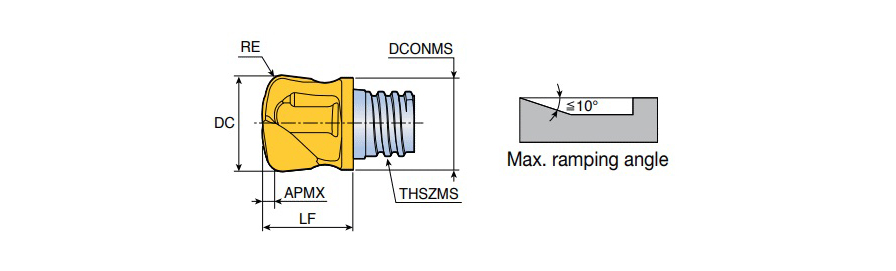

| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | | Functional Length (LF) | 17.4 mm |
| Cutting Diameter (DC) | 20 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 3.4 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S12 | Protruding Length (LPR) | 17.4 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 18.3 mm | Unit | M |
Product Features
| Family Description | Interchangeable solid carbide High Feed mill heads with 2 flute | FamilyName | MXFX-02 (High feed) |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.1360
Name
Solid End Mill Heads
FamilyName
MXFX-02 (High feed)
BrandName
Taegutec
