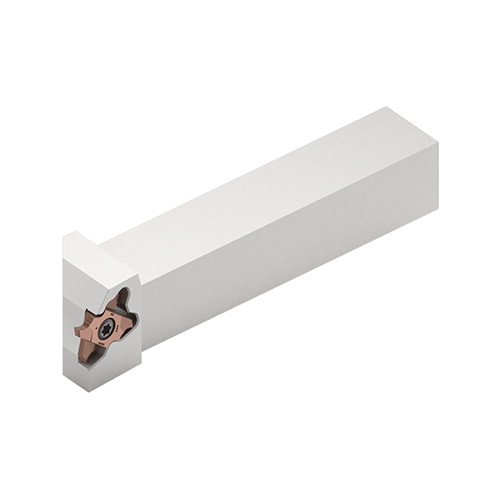

TQHL 25-20-Q

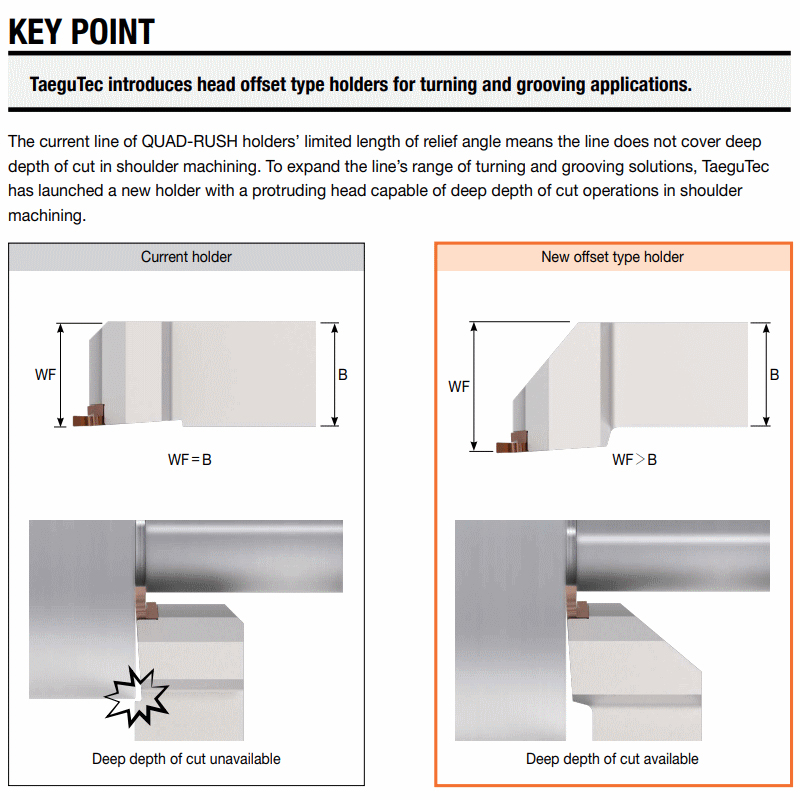

QUAD-RUSH head offset type holders for turning and grooving

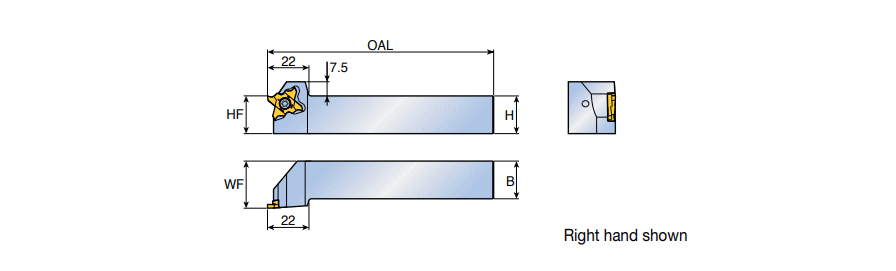

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 135 mm | Insert Seat Size Code (SSC) | 20 |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Ext. Threading (Groove Turn) | Parting | | Master Insert Identification (MIID) | TQS 20-2.00-0.10-L |
| Body Material | Steel | Functional Width (WF) | 30.3 mm |
| Work Piece Parting Diameter Maximum (CUTDIA) | 20 | Unit | M |
Product Features
| Family Description | QUAD-RUSH head offset type holders for turning and grooving | FamilyName | TQHR/L-20-Q |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.6840
Name
Parting Off Indexable Holders
FamilyName
TQHR/L-20-Q
BrandName
Taegutec
