TR15-T-31.7-W55-4T TT5525

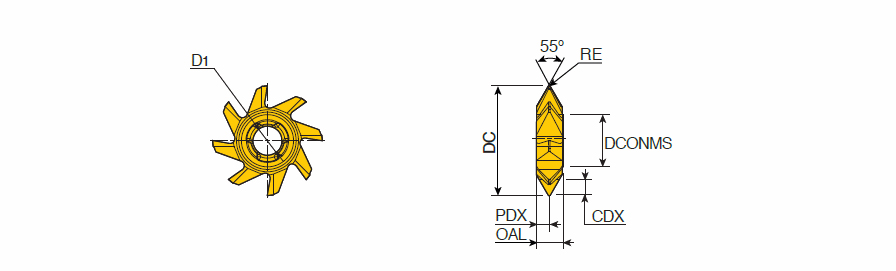

Interchangeable solid carbide threading heads with 55° Partial profile
| Cutting Diameter (DC) | 31.7 mm | Threads per Inch Maximum (TPIX) | 6 |
| Coating | AlTiCrN | Threads per Inch Minimum (TPIN) | 4 |
| Grade | TT5525 | Minimum Bore Diameter (DMIN) | 46 mm |
| Corner Radius (RE) | 0.5 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Overall Length (OAL) | 7.7 mm |
| Application | | External Thread Milling | Internal Thread Milling | Solid Carbide End Mills | Tools for Swiss Machines | | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Interchangeable solid carbide threading heads with 55° Partial profile | COO | S.KOREA |
| Remarks | TPI: Threads per inch ZEFP: Peripheral effective cutting edge count |
Shipping Info
Weight per item
0.0465
