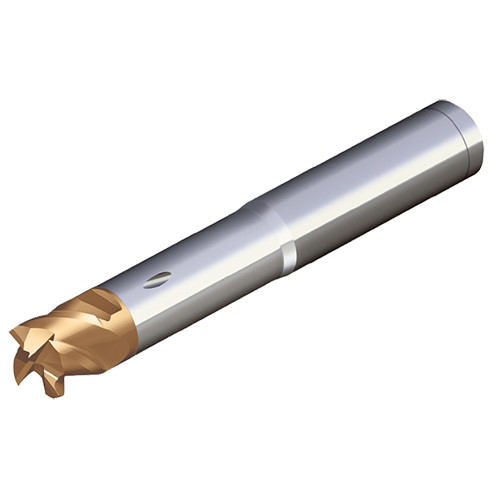

MXSSD20L130S12-W-A
Tungsten straight shanks with stepped neck & internal coolant hole for MAXIRUSH milling heads

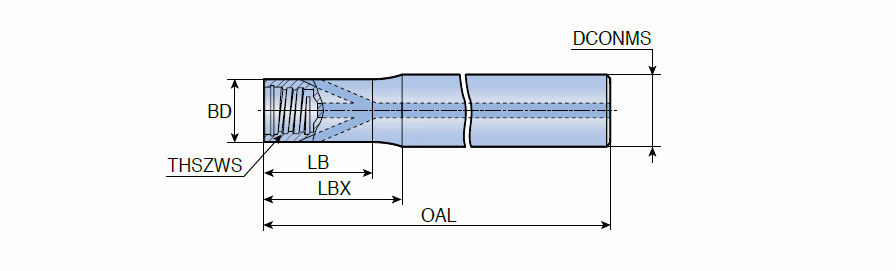

| Connection Thread Nominal Size Workpiece Side (THSZWS) | S12 | Body Diameter (BD) | 18.3 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Length (LB) | 77 mm |
| Material | Tungsten | Measurement Type | Metric |
| Overall Length (OAL) | 130 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 80 mm | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | Tungsten straight shanks with stepped neck & internal coolant hole for MAXIRUSH milling heads | FamilyName | MXSSD-W |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.5860
Name
Solid End Mill Shanks
FamilyName
MXSSD-W
BrandName
Taegutec
