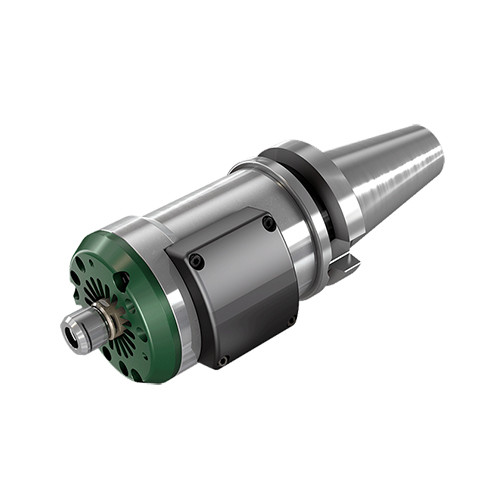

TJS GJET BT40
Coolant driven high-speed compact spindles with BT shanks

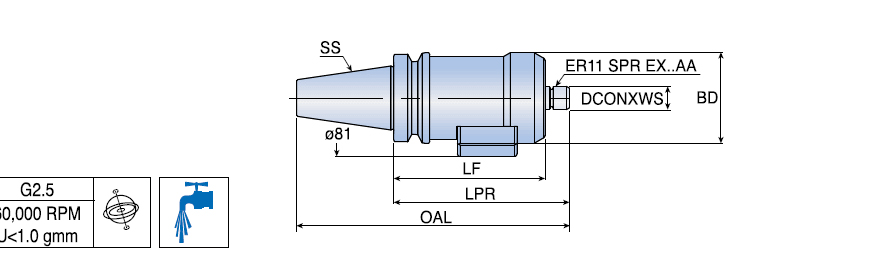

| Shank Size (SS) | 40 mm | Measurement Type | Metric |
| Functional Length (LF) | 107 mm | Application | | High Speed Jet Spindle | |
| Protruding Length (LPR) | 124 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Overall Length (OAL) | 189.5 mm | Body Material | Steel |
| Body Diameter (BD) | 63 mm | Unit | M |
Product Features
| Family Description | Coolant driven high-speed compact spindles with BT shanks | FamilyName | TJS-GJET-BT |
| Remarks | Minimum coolant pressure 20 bar and flow rate 12 l/min The spindle provides only external strong coolant jet around the tool | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
1.8000
Name
HSM Spindles
FamilyName
TJS-GJET-BT
BrandName
Taegutec
