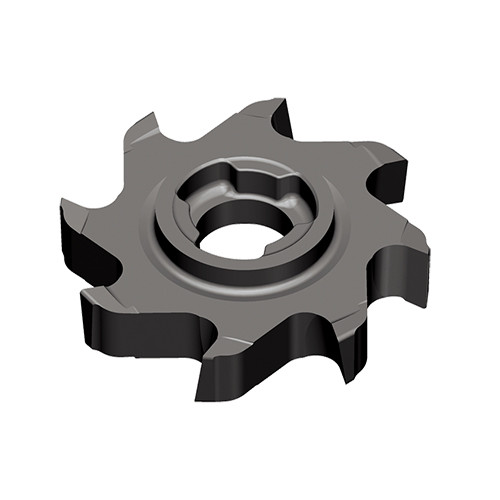

TR17-S-39.7-5.0R0.4 TT5525
Interchangeable solid carbide Slot milling heads for slotting of various widths 3.0 - 10.0 mm with 6 to 10 flutes
| Application | | Bottom Shouldering | Side Slotting | Solid Carbide End Mills | T Slotting | Tools for Swiss Machines | | Grade | TT5525 |

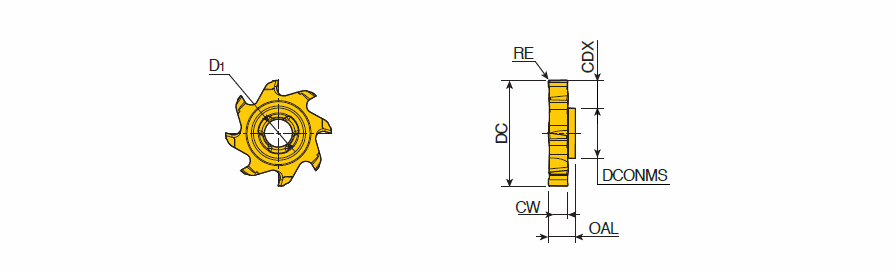

| Cutting Diameter (DC) | 39.7 mm | Coating | AlTiCrN |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 10 | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Protruding Length (LPR) | 10 mm |
| Cutting Depth Maximum (CDX) | 11 mm | Body Material | Carbide |
| Cutting Width (CW) | 5 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 17 mm |
Product Features
| Family Description | Interchangeable solid carbide Slot milling heads for slotting of various widths 3.0 - 10.0 mm with 6 to 10 flutes | FamilyName | TR-S (Head) |
| Remarks | NOF: Number of flutes | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0680
Name
Solid End Mill Heads
FamilyName
TR-S (Head)
BrandName
Taegutec
