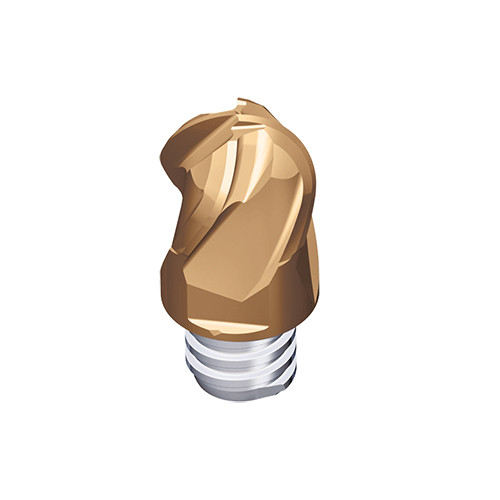

MXBD250L22-BG-04S15 TT5523
Interchangeable solid carbide Ball nose mill heads with 4 flute for high precision machining

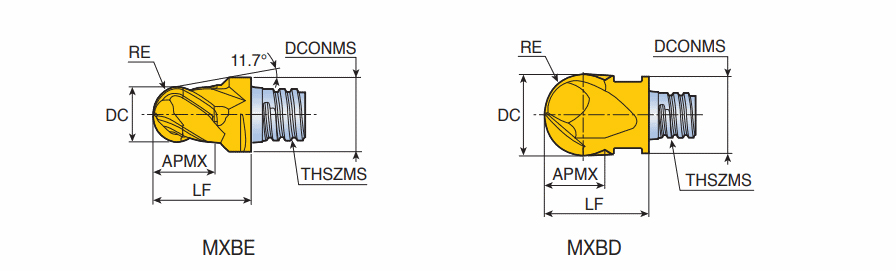

| Application | | Profiling | Solid Carbide End Mills | | Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Diameter (DC) | 25 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 12.47 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S15 | Protruding Length (LPR) | 37 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 23.9 mm | Unit | M |
| Functional Length (LF) | 37 mm |
Product Features
| Family Description | Interchangeable solid carbide Ball nose mill heads with 4 flute for high precision machining | FamilyName | MXBD(E)-BG-04 (Ball) |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.2430
Name
Solid End Mill Heads
FamilyName
MXBD(E)-BG-04 (Ball)
BrandName
Taegutec
