MXEE117L07R03-03S08 TT5523

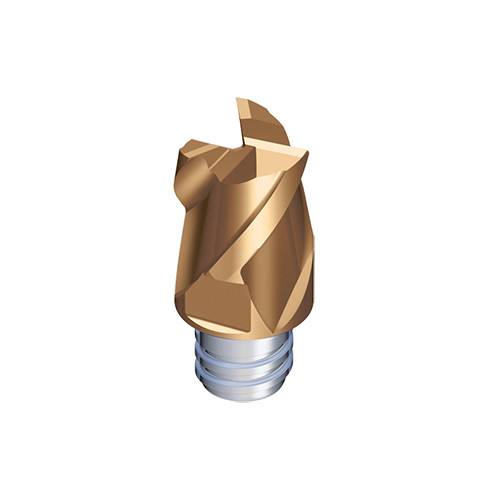

Interchangeable solid carbide flat type end mill heads with 3 flute for keyways

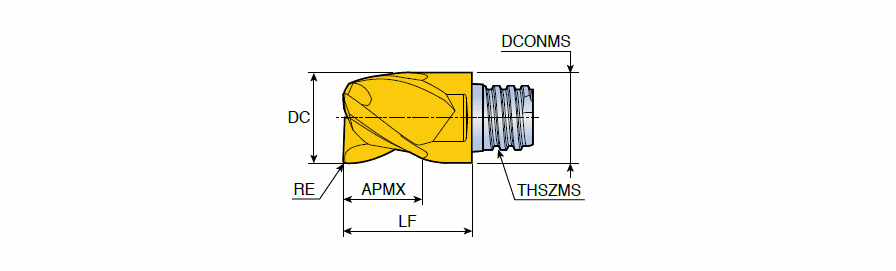

| Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | | Flute Helix Angle (FHA) | 38 Degrees |
| Cutting Diameter (DC) | 11.7 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Corner Radius (RE) | 0.3 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Protruding Length (LPR) | 16.5 mm |
| Depth of Cut Maximum (APMX) | 7 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm | Unit | M |
| Functional Length (LF) | 16.5 mm |
Product Features
| Family Description | Interchangeable solid carbide flat type end mill heads with 3 flute for keyways | FamilyName | MXEE-03 (H.A 38, keyways) |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0285
Name
Solid End Mill Heads
FamilyName
MXEE-03 (H.A 38, keyways)
BrandName
Taegutec
