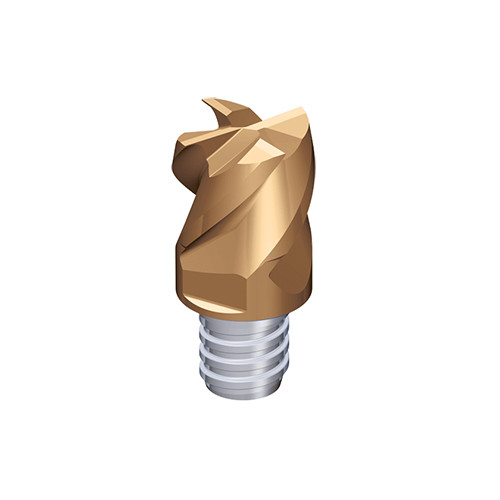

MXEE100L07R00-04S06 TT5523
Interchangeable Solid carbide flat type end mill heads with 4 flute & various corner radii for general purpose

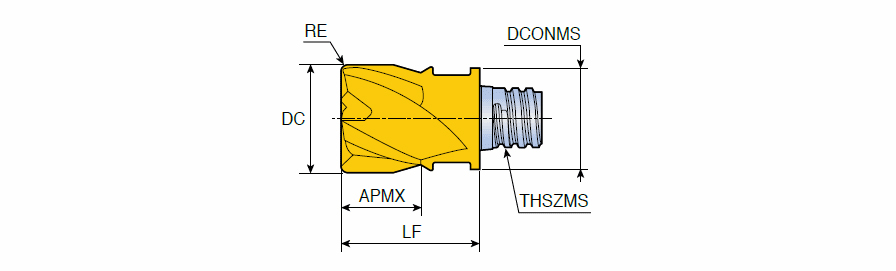

| Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | | Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 10 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | - | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S06 | Protruding Length (LPR) | 13 mm |
| Depth of Cut Maximum (APMX) | 7 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 9.6 mm | Unit | M |
| Functional Length (LF) | 13 mm |
Product Features
| Family Description | Interchangeable Solid carbide flat type end mill heads with 4 flute & various corner radii for general purpose | FamilyName | MXEE(D)-04 |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0190
Name
Solid End Mill Heads
FamilyName
MXEE(D)-04
BrandName
Taegutec
