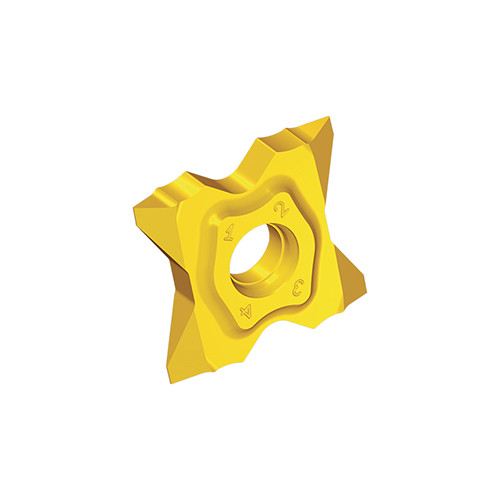

TQS 27-6WT-0.25 TT9080

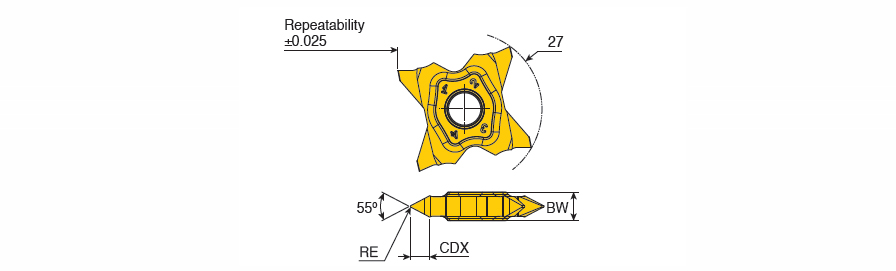

Inserts with 4 cutting edge for Partial profile 55° of external threading
| Corner Radius (RE) | 0.25 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Width (CW) | 6 mm | Cutting Edge Length (L) | 3.9 mm |
| Grade | TT9080 | Threads per Inch Maximum (TPIX) | 12 |
| Coating | TiAlN+TiN | Threads per Inch Minimum (TPIN) | 9 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Angle | 0.3 Degrees | Unit | M |
| Application | | Ext. Threading (Groove Turn) | Inserts | |
Product Features
| Family Description | Inserts with 4 cutting edge for Partial profile 55° of external threading | FamilyName | TQS 27-WT |
| Remarks | TPI: Thread / Inch | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0218
Name
On-Edge Threading Indexable Inserts
FamilyName
TQS 27-WT
BrandName
Taegutec
