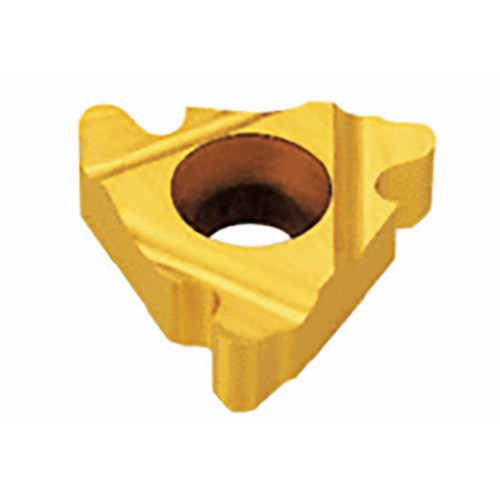

27ER 4 API 503 TT9030
External API - oil thread profile threading inserts

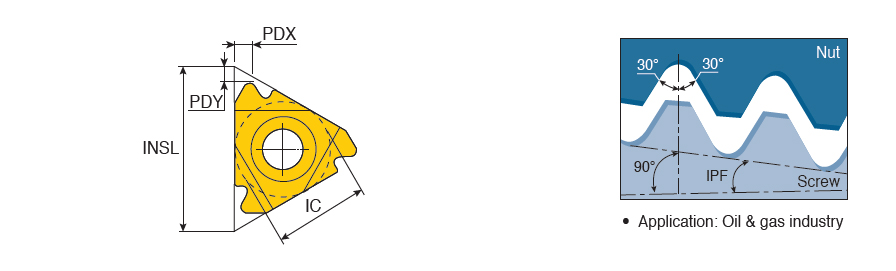

| Inscribed Circle Diameter (IC) | 15.88 mm | Application | | External Threading | |
| Insert Length (INSL) | 27 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 4 | Measurement Type | Metric |
| Grade | TT9030 | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | External API - oil thread profile threading inserts | FamilyName | ER/L-API |
| Remarks | 0.050, API spec 74 1994 | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0047
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-API
BrandName
Taegutec
