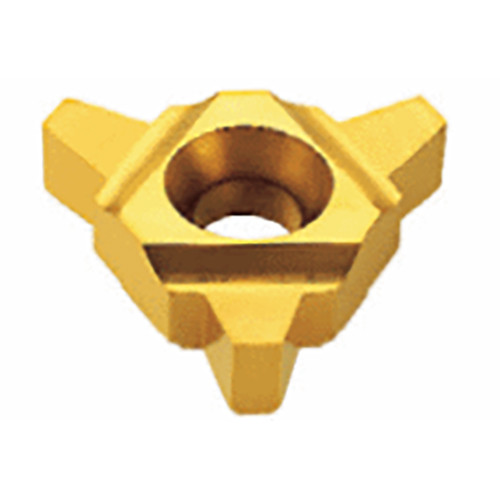

22UIRL 6 TR TT9030

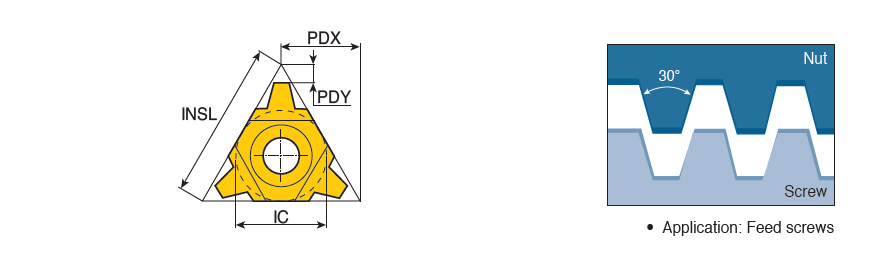

Internal Trapeze shaped DIN 103 U-type threading inserts for feed screws
| Inscribed Circle Diameter (IC) | 12.7 mm | Application | | Internal Threading | |
| Insert Length (INSL) | 22 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 6 mm | Measurement Type | Metric |
| Grade | TT9030 | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal Trapeze shaped DIN 103 U-type threading inserts for feed screws | FamilyName | UIRL-TR |
| Remarks | DIN 103 04 / 1977, 150 2901 / 1977 Class 7H (7E) | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0050
Name
Laydown Threading Indexable Inserts
FamilyName
UIRL-TR
BrandName
Taegutec
