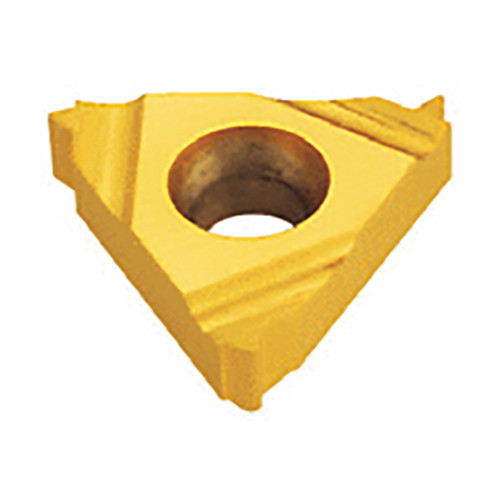

08IR 18 NPTF TT8010
Internal NPTF (National Pipe Threads) full profile threading inserts for steam, gas and water pipes

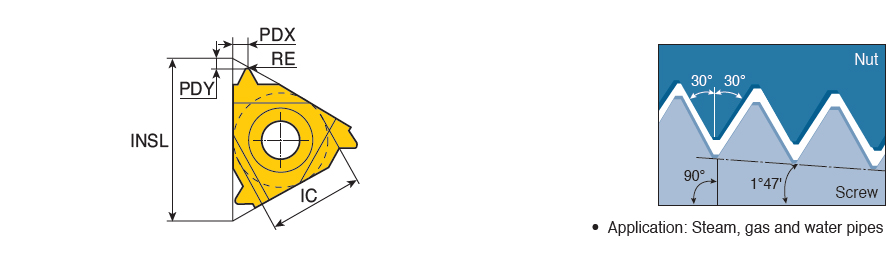

| Inscribed Circle Diameter (IC) | 4.76 mm | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 8 mm | Application | | Internal Threading | |
| Threads per Inch (TPI) | 18 | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.06 mm | Measurement Type | Metric |
| Grade | TT8010 | Body Material | Carbide |
| Coating | TiN | Unit | M |
Product Features
| Family Description | Internal NPTF (National Pipe Threads) full profile threading inserts for steam, gas and water pipes | FamilyName | IR/L-NPTF |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.0017
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-NPTF
BrandName
Taegutec
