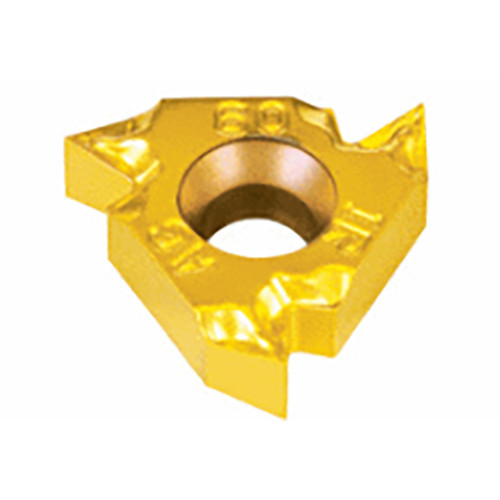

16IR AG 60 TT9030
Internal 60° partial profile threading inserts for general industry

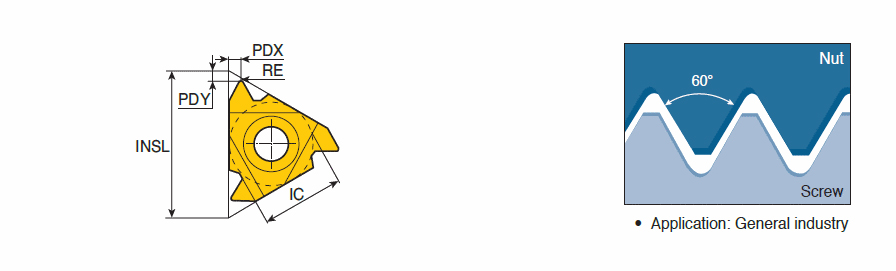

| Inscribed Circle Diameter (IC) | 9.52 mm | Threads per Inch Minimum (TPIN) | 8 Threads/ |
| Insert Length (INSL) | 16 mm | Threads per Inch Maximum (TPIX) | 48 Threads/ |
| Corner Radius (RE) | 0.05 mm | Thread Pitch Minimum (TPN) | 0.5 mm |
| Grade | TT9030 | Thread Pitch Maximum (TPX) | 3 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Internal Threading | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
Product Features
| Family Description | Internal 60° partial profile threading inserts for general industry | FamilyName | IR/L-60 |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.0054
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-60
BrandName
Taegutec
