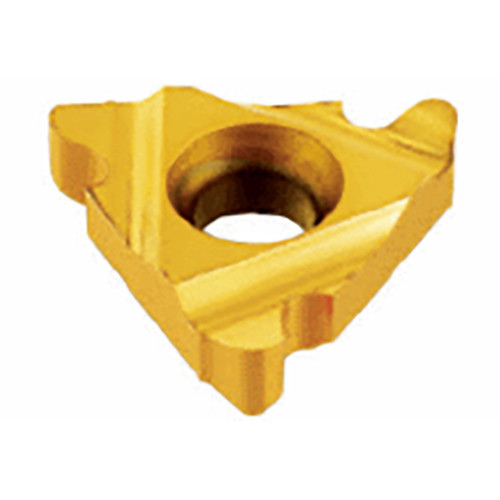

27IR 4 API 382 TT7010
Internal API - oil thread, round profile (API Spec 74-1994) laydown threading inserts.

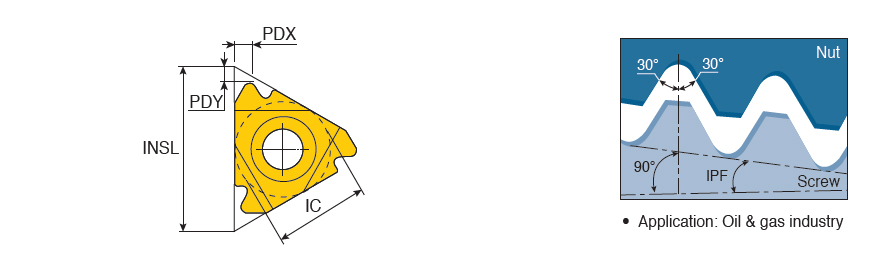

| Inscribed Circle Diameter (IC) | 15.88 mm | Application | | Internal Threading | |
| Insert Length (INSL) | 27 mm | Applicable Material | | Steel | Cast Iron | |
| Threads per Inch (TPI) | 4 | Measurement Type | Metric |
| Grade | TT7010 | Body Material | Carbide |
| Coating | TiN | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal API - oil thread, round profile (API Spec 74-1994) laydown threading inserts. | FamilyName | IR/L-API |
| Remarks | 0.050, API spec 74 1994 | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0100
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-API
BrandName
Taegutec
