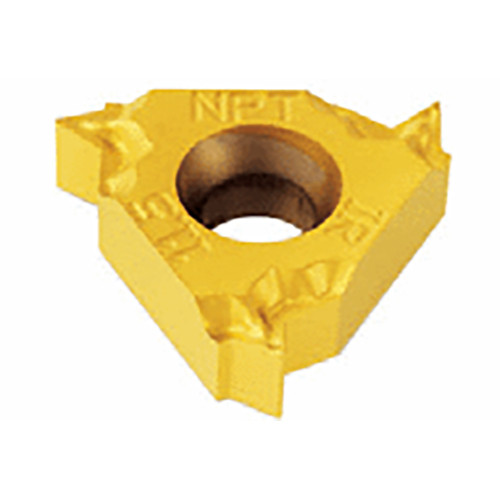

16IRM 14 NPT TT7010
Internal NPT (National Pipe Threads) full profile threading inserts for steam, gas and water pipes

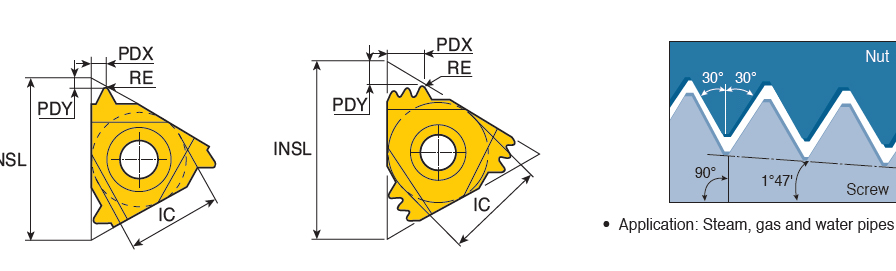

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 16 mm | Application | | Internal Threading | |
| Threads per Inch (TPI) | 14 | Applicable Material | | Steel | Cast Iron | |
| Corner Radius (RE) | 0.07 mm | Measurement Type | Metric |
| Grade | TT7010 | Body Material | Carbide |
| Coating | TiN | Unit | M |
Product Features
| Family Description | Internal NPT (National Pipe Threads) full profile threading inserts for steam, gas and water pipes | FamilyName | IR/L-NPT |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.0039
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-NPT
BrandName
Taegutec
