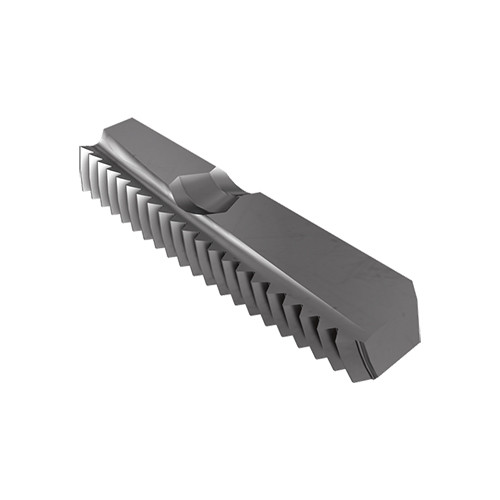

TMTH 63 11.5 NPT TT9030
External & internal NPT full profile thread milling inserts, for steam, gas and water pipes.

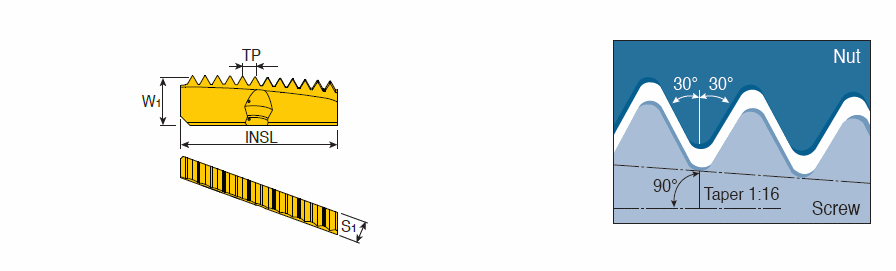

| Threads per Inch (TPI) | 11.5 | Grade | TT9030 |
| Insert Length (INSL) | 38 mm | Thread Designation Outside (THOD) | 1-2″ NPT |
| Insert Width (W1) | 11.9 mm | Cutting Edge Material | Carbide |
| Insert Thickness Total (S1) | 5 mm | Coating | TiAlN |
| Thread Designation Inside (THID) | - | Measurement Type | Metric |
| Application | | External Thread Milling | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | External & internal NPT full profile thread milling inserts, for steam, gas and water pipes. | COO | ISRAEL |
Shipping Info
Weight per item
0.0000
