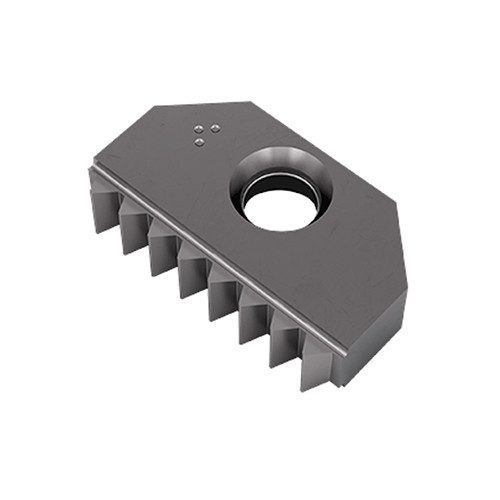

TTMT14 I 16 UN TT9030
Thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) internal full profile threads of general applications

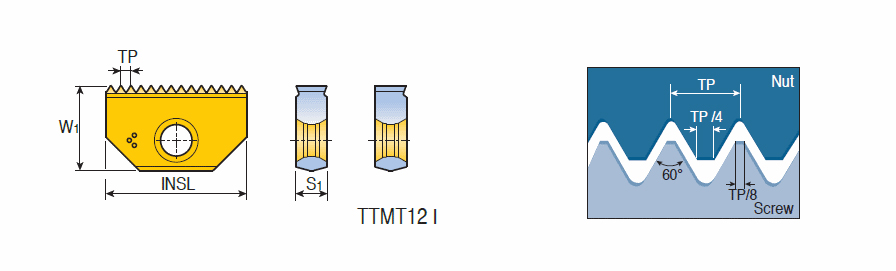

| Threads per Inch (TPI) | 16 | Grade | TT9030 |
| Insert Length (INSL) | 14 mm | Cutting Edge Material | Carbide |
| Insert Width (W1) | 7.9 mm | Coating | TiAlN |
| Insert Thickness Total (S1) | 3.2 mm | Measurement Type | Metric |
| Application | | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | Thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) internal full profile threads of general applications | COO | ISRAEL |
Shipping Info
Weight per item
0.0081
