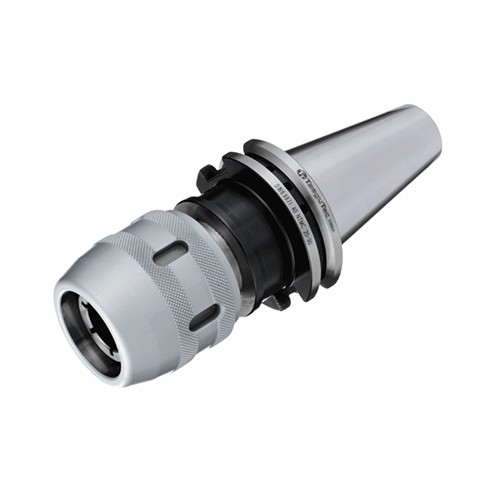

BT50 NTMC 25-165
Milling chucks with BT MAS-403 Form AD taper shank with coolant hole

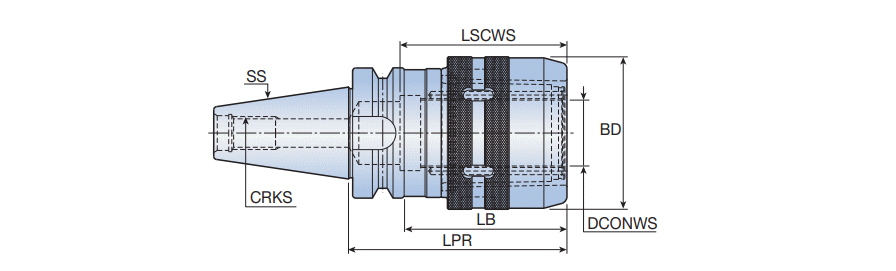

| Connection Diameter Machine Side (DCONMS) | 50 mm | Application | | BT MAS 403 | |
| Body Diameter (BD) | 62 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 165 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Clamping Length Workpiece Side (LSCWS) | 90 mm |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | Milling chucks with BT MAS-403 Form AD taper shank with coolant hole | FamilyName | BT-NTMC (Milling Chuck) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
5.7100
Name
Milling Chucks
FamilyName
BT-NTMC (Milling Chuck)
BrandName
Taegutec
