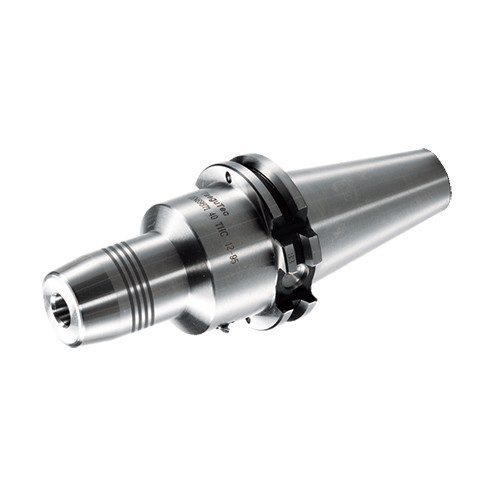

DIN69871 40 THC 16-95
Hydraulic chucks with DIN 69871 form AD taper shanks

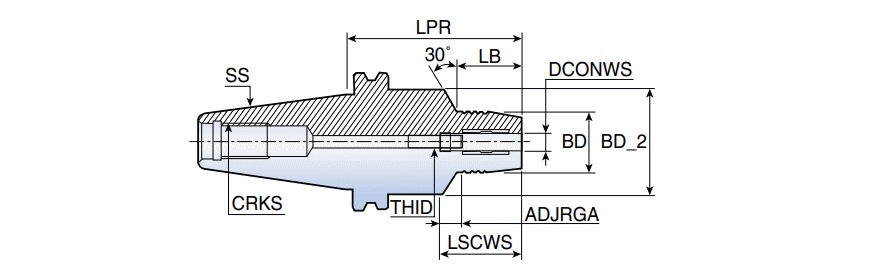

| Body Length Maximum (LBX) | 10 mm | Nose Diameter | 50 mm |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Application | | DIN 69871 | |
| Body Diameter (BD) | 38 mm | Nose Length | 48 mm |
| Protruding Length (LPR) | 95 mm | Measurement Type | Metric |
| Clamping Length Workpiece Side (LSCWS) | 52.5 mm | Body Material | Steel |
| Shank Size (SS) | 40 mm | Unit | M |
Product Features
| Family Description | Hydraulic chucks with DIN 69871 form AD taper shanks | FamilyName | DIN69871-THC (Hydraulic) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.6650
Name
Hydraulic Holders
FamilyName
DIN69871-THC (Hydraulic)
BrandName
Taegutec
