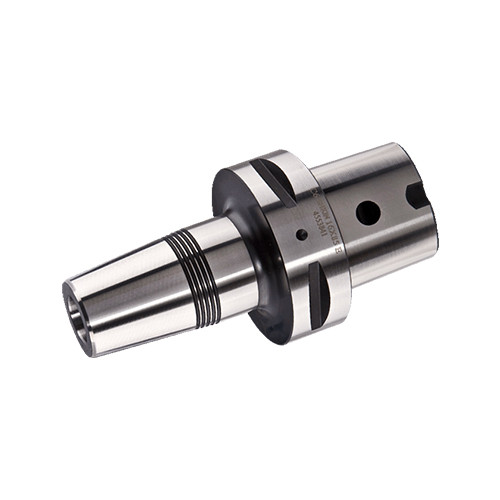

C6 SRKIN 6X80
Thermal shrinking chucks with C-ADAPTER (ISO 26623-1) shanks for solid carbide and steel shank tools

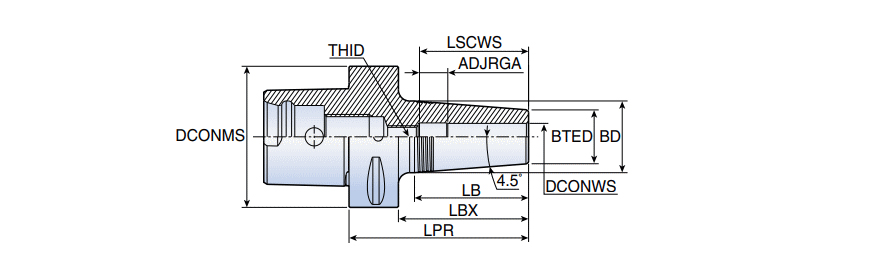

| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Clamping Length Workpiece Side (LSCWS) | 36 mm |
| Shank Size (SS) | 63 mm | Usable Length (LU) | 80 mm |
| Body Length (LB) | 38.1 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 21 mm | Body Material | Steel |
| Application | | ISO 26623 1 C ADAPTER | | Unit | M |
| Thread Designation Inside (THID) | M5 |
Product Features
| Family Description | Thermal shrinking chucks with C-ADAPTER (ISO 26623-1) shanks for solid carbide and steel shank tools | FamilyName | C-SRKIN |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
1.0000
Name
Shrink Fit Holders
FamilyName
C-SRKIN
BrandName
Taegutec
