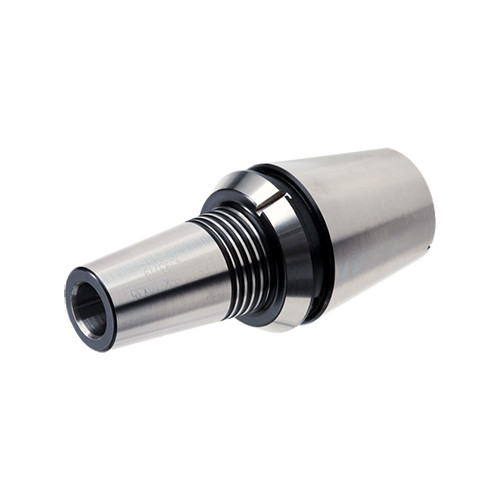

ER32 SRK 3X60 JET2
Thermal shrinking chucks with DIN 6499 ER collets for solid carbide tools & two angular coolant channels

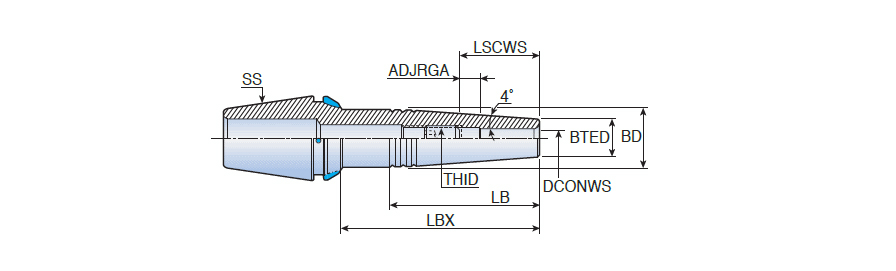

| Connection Diameter Workpiece Side (DCONWS) | 3 mm | Thread Designation Inside (THID) | M6 |
| Shank Size (SS) | ER32 mm | Clamping Length Workpiece Side (LSCWS) | 16 mm |
| Body Length (LB) | 44.5 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 10 mm | Body Material | Steel |
| Application | | Collets & Accessories | | Unit | M |
Product Features
| Family Description | Thermal shrinking chucks with DIN 6499 ER collets for solid carbide tools & two angular coolant channels | FamilyName | ER-SRK-JET2 |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.2100
Name
Shrink Fit Holders
FamilyName
ER-SRK-JET2
BrandName
Taegutec
