ER32 SRK 4X85
Thermal shrinking chucks with DIN 6499 ER collets for solid carbide tools

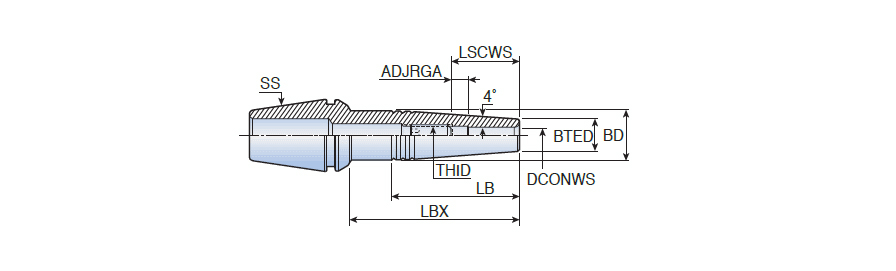

| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | Collets & Accessories | |
| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Thread Designation Inside (THID) | M6 |
| Shank Size (SS) | ER32 mm | Clamping Length Workpiece Side (LSCWS) | 18 mm |
| Body Length (LB) | 70 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 10 mm | Body Material | Steel |
| Overall Length (OAL) | 125 mm | Unit | M |
Product Features
| Family Description | Thermal shrinking chucks with DIN 6499 ER collets for solid carbide tools | FamilyName | ER-SRK |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.2650
Name
Shrink Fit Holders
FamilyName
ER-SRK
BrandName
Taegutec
