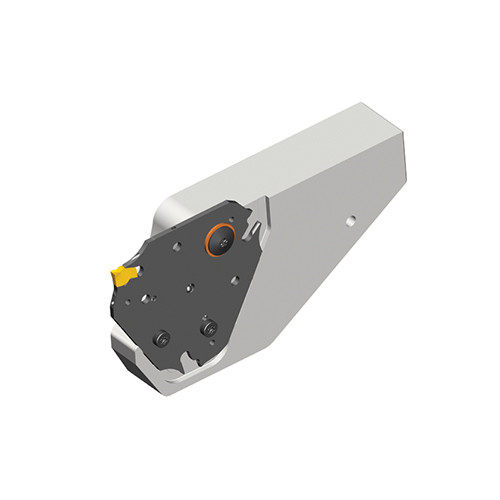

THTBR 25-D52-TB

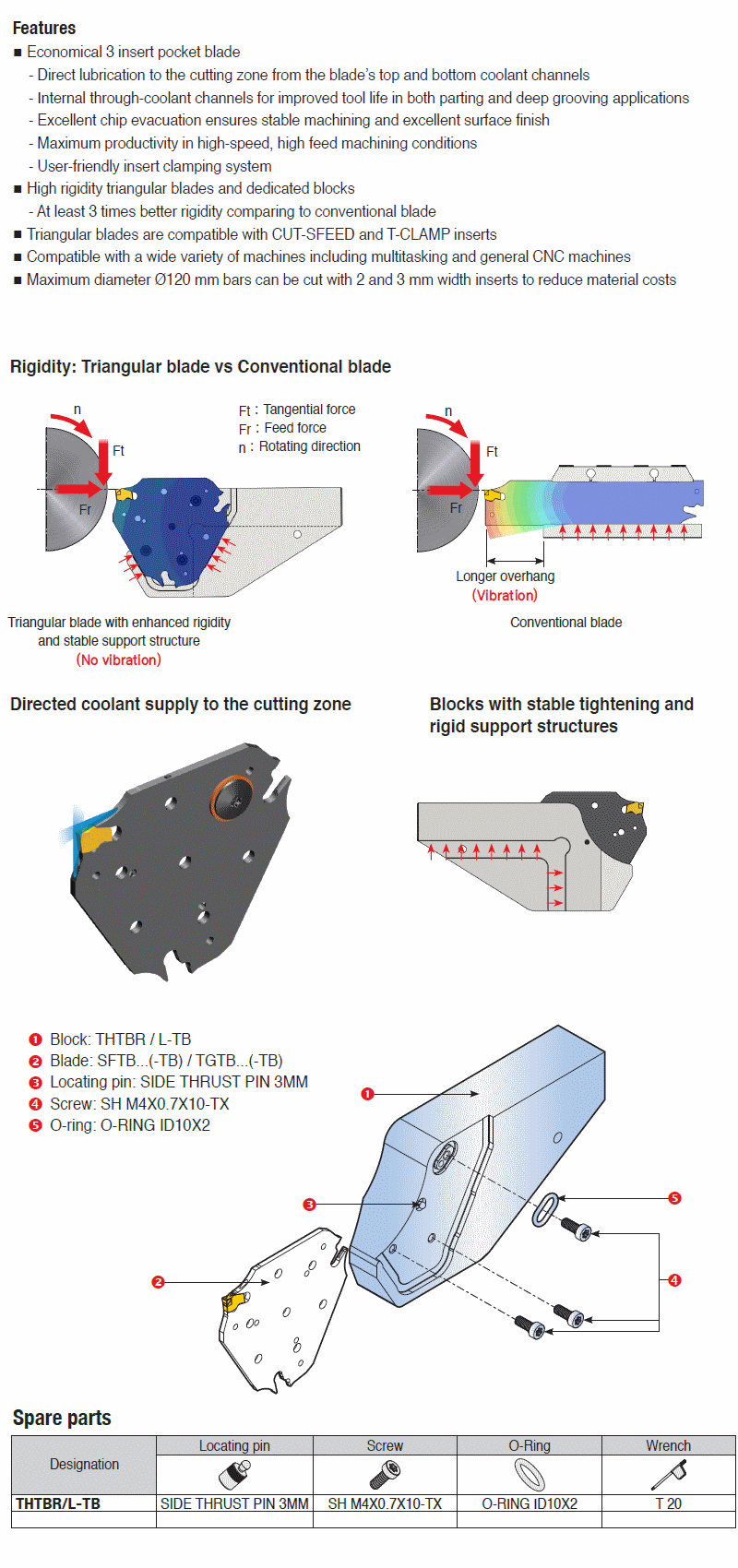

Ultra Rigid Blocks for Parting and deep grooving with SFTB/TGTB triangular blades and high pressure coolant

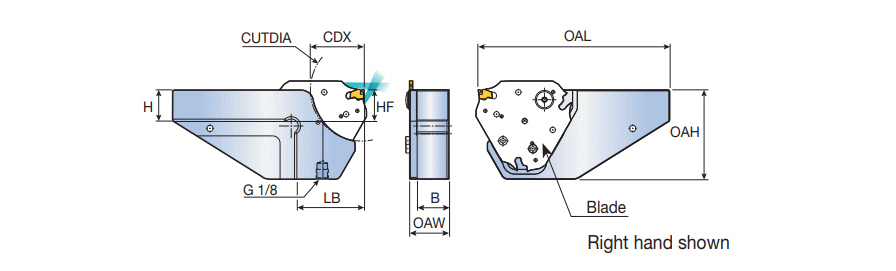

| Cutting Direction (HAND) | Right Hand | Body Length (LB) | 40 mm |
| Overall Length (OAL) | 135 mm | Body Material | Steel |
| Height | 25 mm | Overall Width (OAW) | 28.5 mm |
| Shank Width (B) | 22.5 mm | Overall Height (OAH) | 52 mm |
| Shank Height (H) | 25 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 52 mm |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | Ultra Rigid Blocks for Parting and deep grooving with SFTB/TGTB triangular blades and high pressure coolant | FamilyName | THTBR/L-TB |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.3500
Name
Tool Change Blocks
FamilyName
THTBR/L-TB
BrandName
Taegutec
