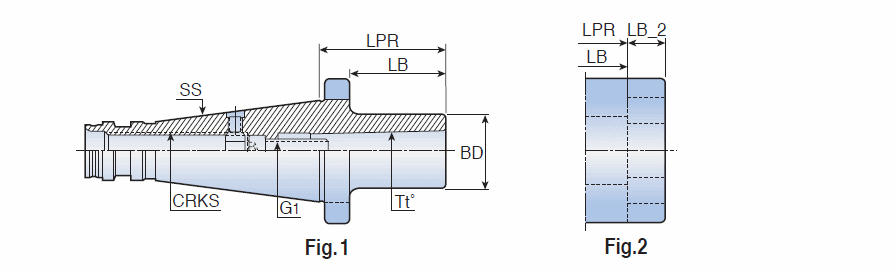

| Body Half Taper Angle (BHTA) | MT5 Degrees | Connection Retention Knob Thread Size (CRKS) | M24 |
| Shank Size (SS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 78 mm |
| Measurement Type | Metric | Functional Length (LF) | 100 mm |
| Application | | Morse Taper | | Body Material | Steel |
| Protruding Length (LPR) | 84.4 mm | Unit | M |
Product Features
| Family Description | DIN 6383 / DIN 228-2 form B draw bar Morse taper adapter with DIN 2080 taper shanks | FamilyName | DIN2080-MT-DRW |
| COO | ITALY | BrandName | Taegutec |
Shipping Info
Weight per item
4.9230
Name

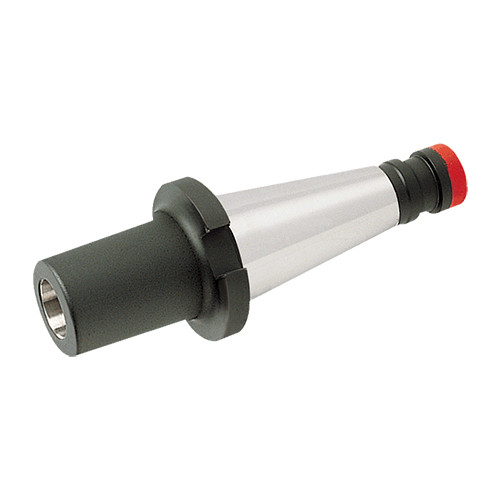

Morse Taper Adapters
FamilyName
DIN2080-MT-DRW
BrandName
Taegutec
