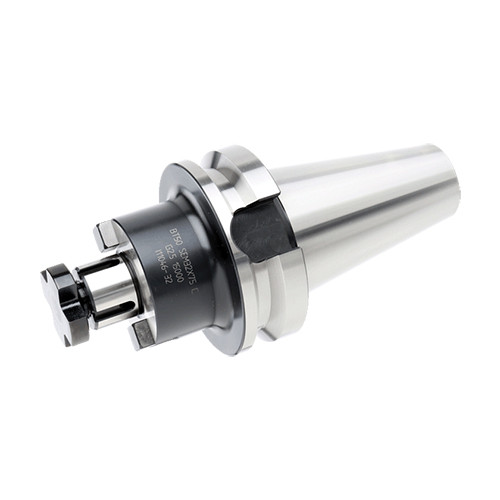

BT50 SEM 32X75 C
ISO 3937 Face mill arbors with coolant holes & BT MAS-403 form ADB taper shanks

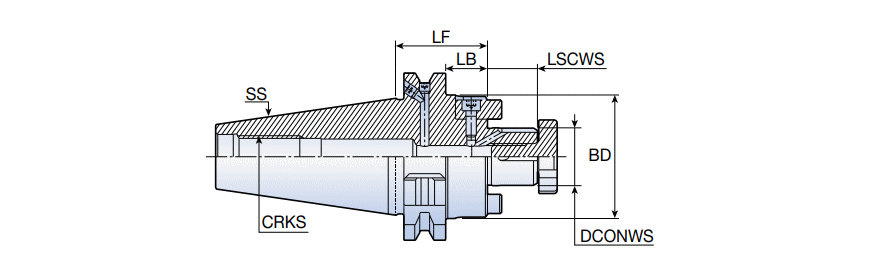

| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Shank Size (SS) | 50 mm | Body Material | Steel |
| Body Length (LB) | 75 mm | Weight of Item (WT) | 4.5 kg |
| Application | | BT MAS 403 | | Unit | M |
Product Features
| Family Description | ISO 3937 Face mill arbors with coolant holes & BT MAS-403 form ADB taper shanks | FamilyName | BT-SEM-C |
| Remarks | If the "B Type" option is required, the plug screw must be removed from the flange cooling hole (Use a 2mm hex key) Wrench not included | BrandName | Taegutec |
| COO | ITALY |
Shipping Info
Weight per item
4.8100
Name
Shell Mill Holders
FamilyName
BT-SEM-C
BrandName
Taegutec
