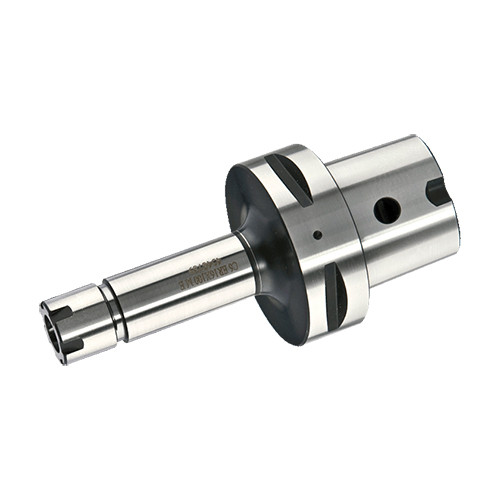

C6 ER16X130 M
DIN 6499 ER mini collet chucks with C-ADAPTER (ISO 26623-1)

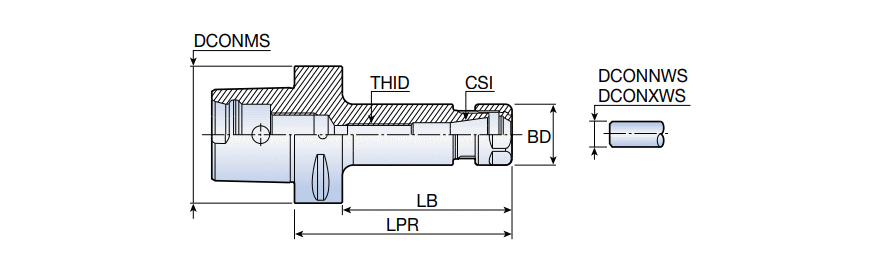

| Connection Size (CSI) | ER16 | Nose Length | 108 mm |
| Body Diameter (BD) | 22 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Length Maximum (LBX) | 130 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | M10 | Body Material | Steel |
| Application | | ISO 26623 1 C ADAPTER | | Unit | M |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with C-ADAPTER (ISO 26623-1) | FamilyName | C-ER-M(MINI) |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
4.1900
Name
Collet Chucks
FamilyName
C-ER-M(MINI)
BrandName
Taegutec
