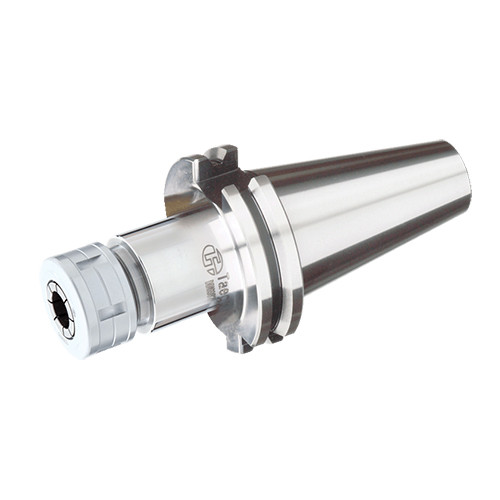

DIN69871 50 TSK 25-195
High accuracy slim collet chucks for finishing with reamer & end mills and general machining with drills & end mills in DIN69871 form AD shanks

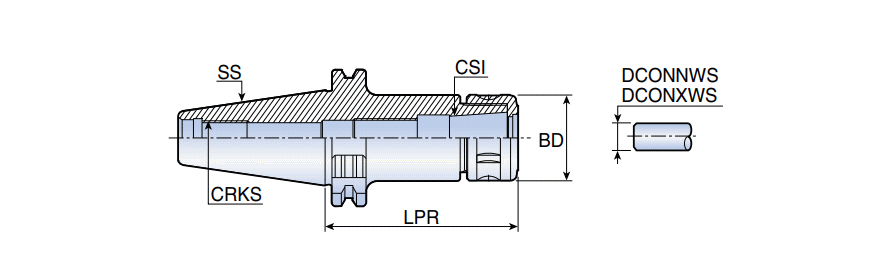

| Connection Size (CSI) | 25 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 7.5 mm |
| Body Diameter (BD) | 54.7 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 25 mm |
| Body Length Maximum (LBX) | 195 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Application | | DIN 69871 | | Unit | M |
Product Features
| Family Description | High accuracy slim collet chucks for finishing with reamer & end mills and general machining with drills & end mills in DIN69871 form AD shanks | FamilyName | DIN69871-TSK (Slim Chuck) |
| Remarks | Add B for coolant through flange | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
6.1000
Name
Collet Chucks
FamilyName
DIN69871-TSK (Slim Chuck)
BrandName
Taegutec
