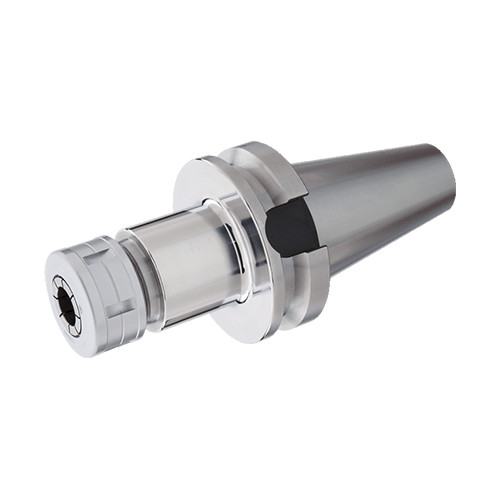

BT40 TSK 6-120
High accuracy slim collet chucks for finishing with reamer & end mills and general machining with drills & end mills in MAS-403 form AD taper shanks

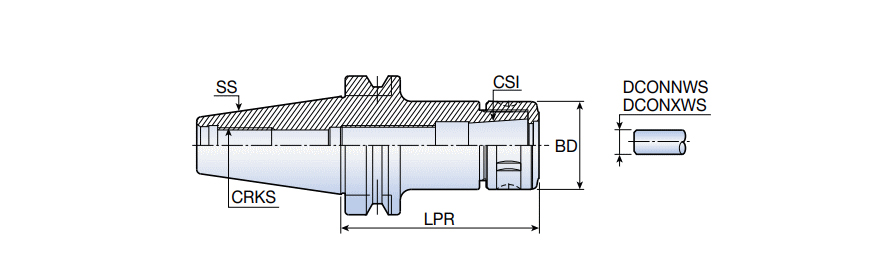

| Connection Size (CSI) | 6 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1.5 mm |
| Body Diameter (BD) | 19.5 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 6 mm |
| Body Length Maximum (LBX) | 120 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Application | | BT MAS 403 | | Unit | M |
Product Features
| Family Description | High accuracy slim collet chucks for finishing with reamer & end mills and general machining with drills & end mills in MAS-403 form AD taper shanks | FamilyName | BT-TSK (Slim Chuck) |
| Remarks | Add B for coolant through flange | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.6000
Name
Collet Chucks
FamilyName
BT-TSK (Slim Chuck)
BrandName
Taegutec
