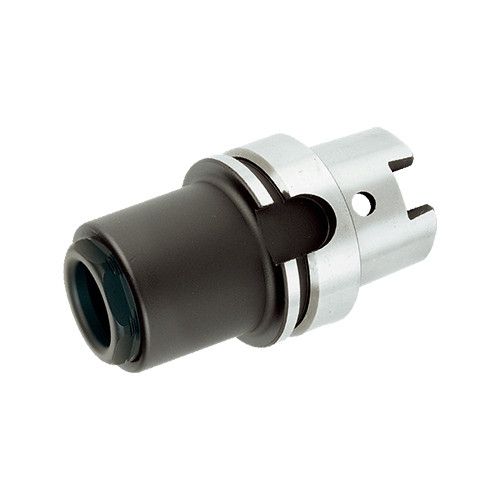

HSK A 100 ER 32 SHORT
Short DIN6499 ER collet chucks with HSK DIN 69893 form A taper shanks

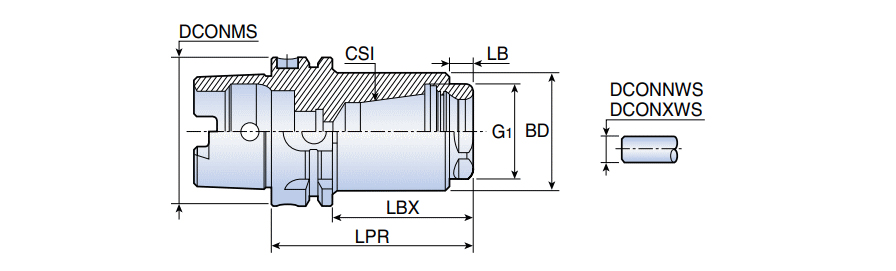

| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length Maximum (LBX) | 89.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Application | | HSK DIN 69893 | | Body Material | Steel |
| Nose Length | 60.5 mm | Unit | M |
Product Features
| Family Description | Short DIN6499 ER collet chucks with HSK DIN 69893 form A taper shanks | FamilyName | HSK A-ER-SHORT |
| Remarks | Equipped with nut ER16 MINI | BrandName | Taegutec |
| COO | ITALY |
Shipping Info
Weight per item
2.7300
Name
Collet Chucks
FamilyName
HSK A-ER-SHORT
BrandName
Taegutec
