GFI MT 2 ER20

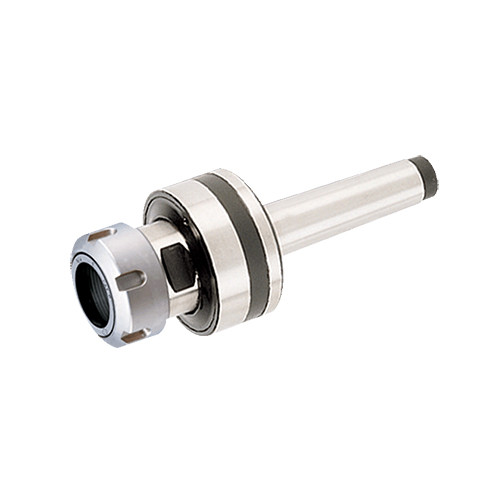

Floating reamer DIN 6499 ER collet chucks with Morse taper shanks

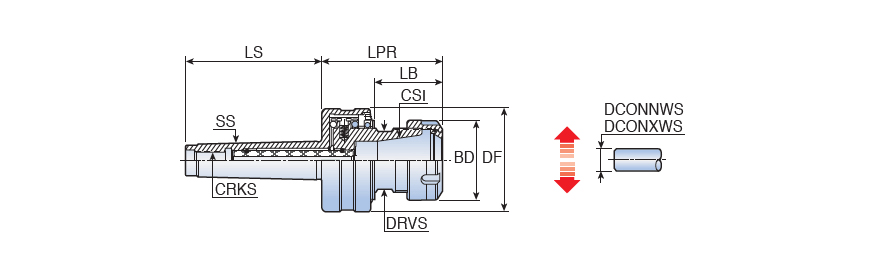

| Connection Size (CSI) | ER20 | Nose Length | 34.5 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Length Maximum (LBX) | 60.5 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Connection Diameter Machine Side (DCONMS) | 2 mm | Measurement Type | Metric |
| Shank Length (LS) | 64 mm | Body Material | Steel |
| Application | | Reamer Collet Chucks | | Unit | M |
Product Features
| Family Description | Floating reamer DIN 6499 ER collet chucks with Morse taper shanks | FamilyName | GFI MT-ER (Reamer Chuck) |
| Remarks | Max. 2,000RPM | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.5190
Name
Collet Chucks
FamilyName
GFI MT-ER (Reamer Chuck)
BrandName
Taegutec
