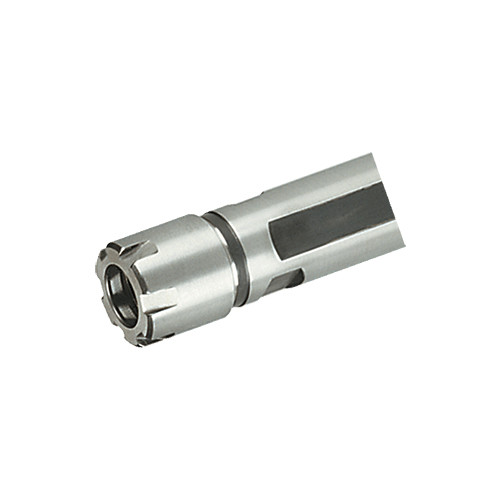

ST 22X 70 ER25 MF
DIN 6499 ER mini collet chucks with straight shank and flat area for clamping on Swiss type CNC lathes

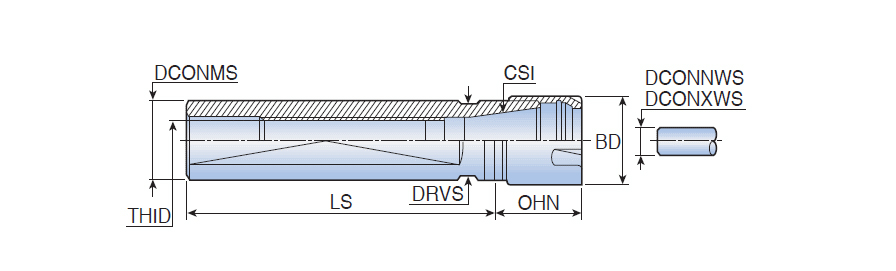

| Connection Size (CSI) | ER25 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 35 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 16 mm |
| Body Length Maximum (LBX) | 47 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12X1 | Body Material | Steel |
| Shank Length (LS) | 70 mm | Unit | M |
| Application | | Straight ST | |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with straight shank and flat area for clamping on Swiss type CNC lathes | FamilyName | ST-ER-MF |
| Remarks | MF: Mini flat shank | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.3300
Name
Collet Chucks
FamilyName
ST-ER-MF
BrandName
Taegutec
