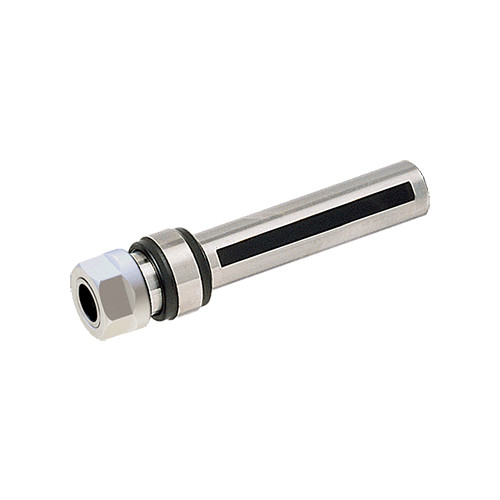

GTI ER20 ST20X80
DIN 6499 ER tapping attachments with straight shanks and floating mechanism

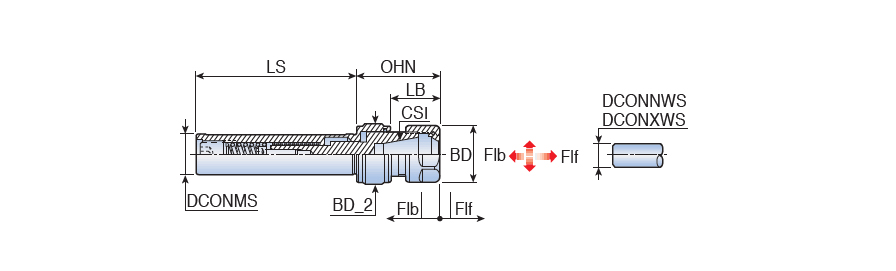

| Connection Size (CSI) | ER20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 33.5 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Length Maximum (LBX) | 49 mm | Tap Max | M14 |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Tap Min | M4 |
| Shank Length (LS) | 80 mm | Measurement Type | Metric |
| Application | | Tapping | | Body Material | Steel |
| Nose Length | 28 mm | Unit | M |
Product Features
| Family Description | DIN 6499 ER tapping attachments with straight shanks and floating mechanism | FamilyName | GTI ER-ST(TAPPING) |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.3900
Name
Collet Chucks
FamilyName
GTI ER-ST(TAPPING)
BrandName
Taegutec
