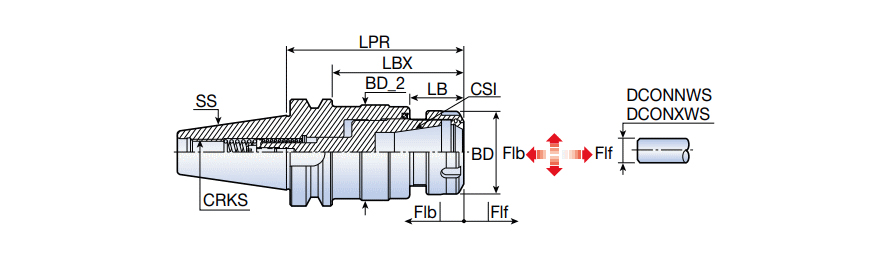

| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | Tap Max | M20 |
| Body Length Maximum (LBX) | 106.8 mm | Tap Min | M6 |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Application | | Tapping | | Body Material | Steel |
| Nose Length | 79.8 mm | Unit | M |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
Product Features

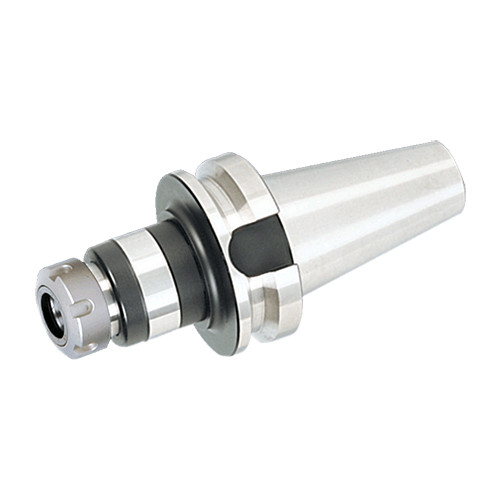

| Family Description | DIN 6499 ER tapping attachments with floating mechanism & BT MAS-403 form A taper shanks | FamilyName | GTI BT-ER(TAPPING) |
| Remarks | No coolant should be induced through the tap chuck as it will cause malfunctioning of the mechanism | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
2.0020
Name
Collet Chucks
FamilyName
GTI BT-ER(TAPPING)
BrandName
Taegutec
