DIN2080 50 ER50X 63

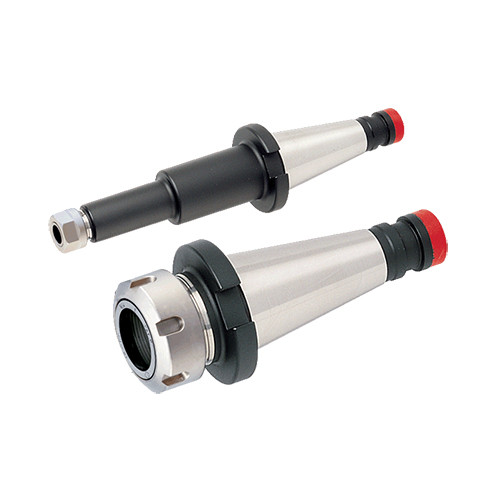

DIN 6499 ER collet chucks with DIN 2080 taper shanks

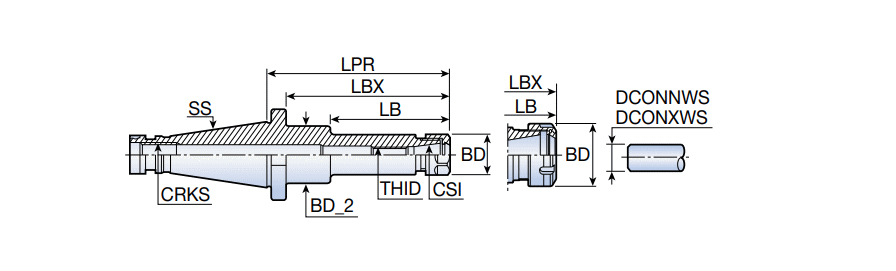

| Connection Size (CSI) | ER50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 10 mm |
| Body Diameter (BD) | 78 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 34 mm |
| Body Length Maximum (LBX) | 63 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M36X1.5 | Body Material | Steel |
| Application | | DIN 2080 | | Unit | M |
| Nose Length | 47.8 mm |
Product Features
| Family Description | DIN 6499 ER collet chucks with DIN 2080 taper shanks | FamilyName | DIN2080-ER |
| COO | ITALY | BrandName | Taegutec |
Shipping Info
Weight per item
3.0200
Name
Collet Chucks
FamilyName
DIN2080-ER
BrandName
Taegutec
