HSK A 100 ER16X160 M

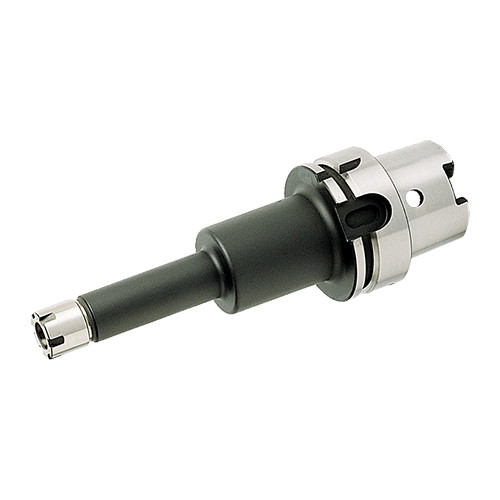

DIN 6499 ER mini collet chucks with HSK DIN 69893 form A taper shanks

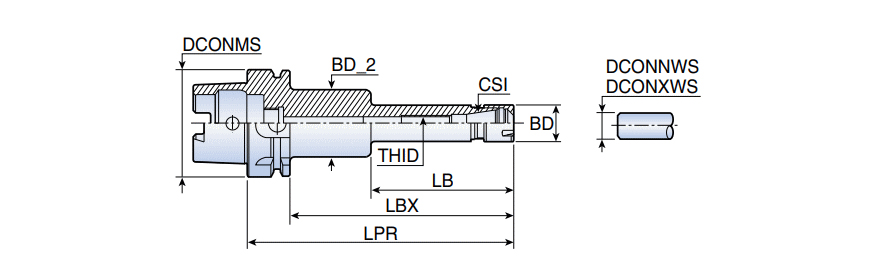

| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 22 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Body Length Maximum (LBX) | 160 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 100 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M10 | Body Material | Steel |
| Application | | HSK DIN 69893 | | Unit | M |
| Nose Length | 131 mm |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with HSK DIN 69893 form A taper shanks | FamilyName | HSK A-ER-M(MINI) |
| COO | ITALY | BrandName | Taegutec |
Shipping Info
Weight per item
2.8100
Name
Collet Chucks
FamilyName
HSK A-ER-M(MINI)
BrandName
Taegutec
