HSK A 63 ER 40X120

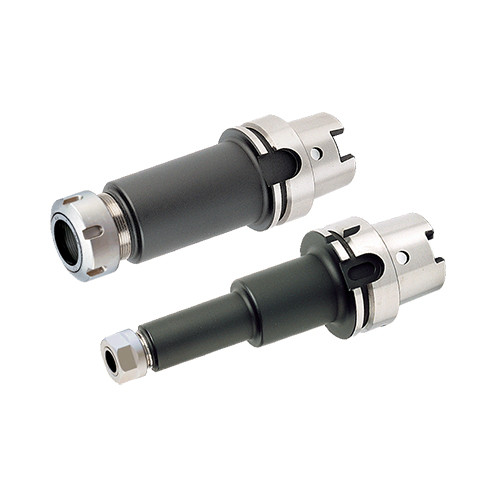

DIN 6499 ER collet chucks with HSK DIN 69893 taper shanks

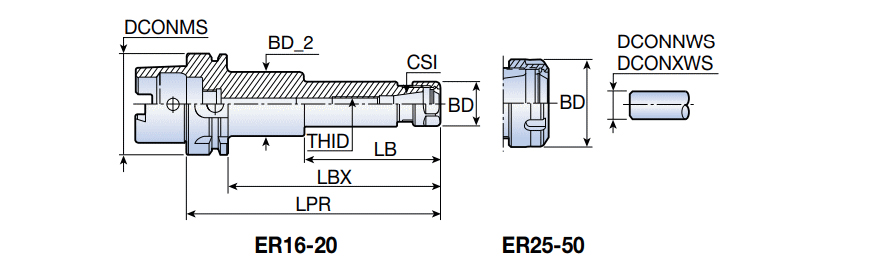

| Connection Size (CSI) | ER40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |
| Body Diameter (BD) | 63 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Body Length Maximum (LBX) | 120 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M28X1.5 | Body Material | Steel |
| Application | | HSK DIN 69893 | | Unit | M |
| Nose Length | 94 mm |
Product Features
| Family Description | DIN 6499 ER collet chucks with HSK DIN 69893 taper shanks | FamilyName | HSK A-ER |
| COO | ITALY | BrandName | Taegutec |
Shipping Info
Weight per item
1.7070
Name
Collet Chucks
FamilyName
HSK A-ER
BrandName
Taegutec
