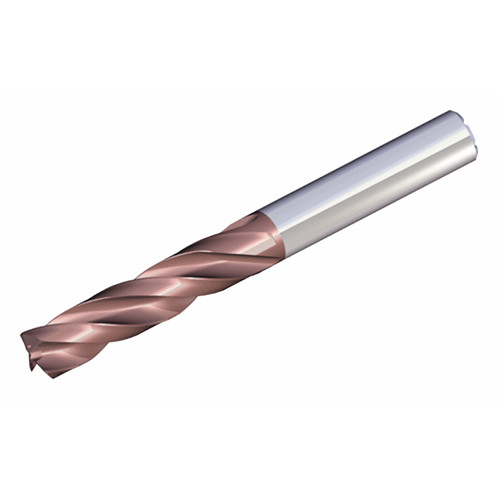

3HD 120-040-12 FI3 TT5130

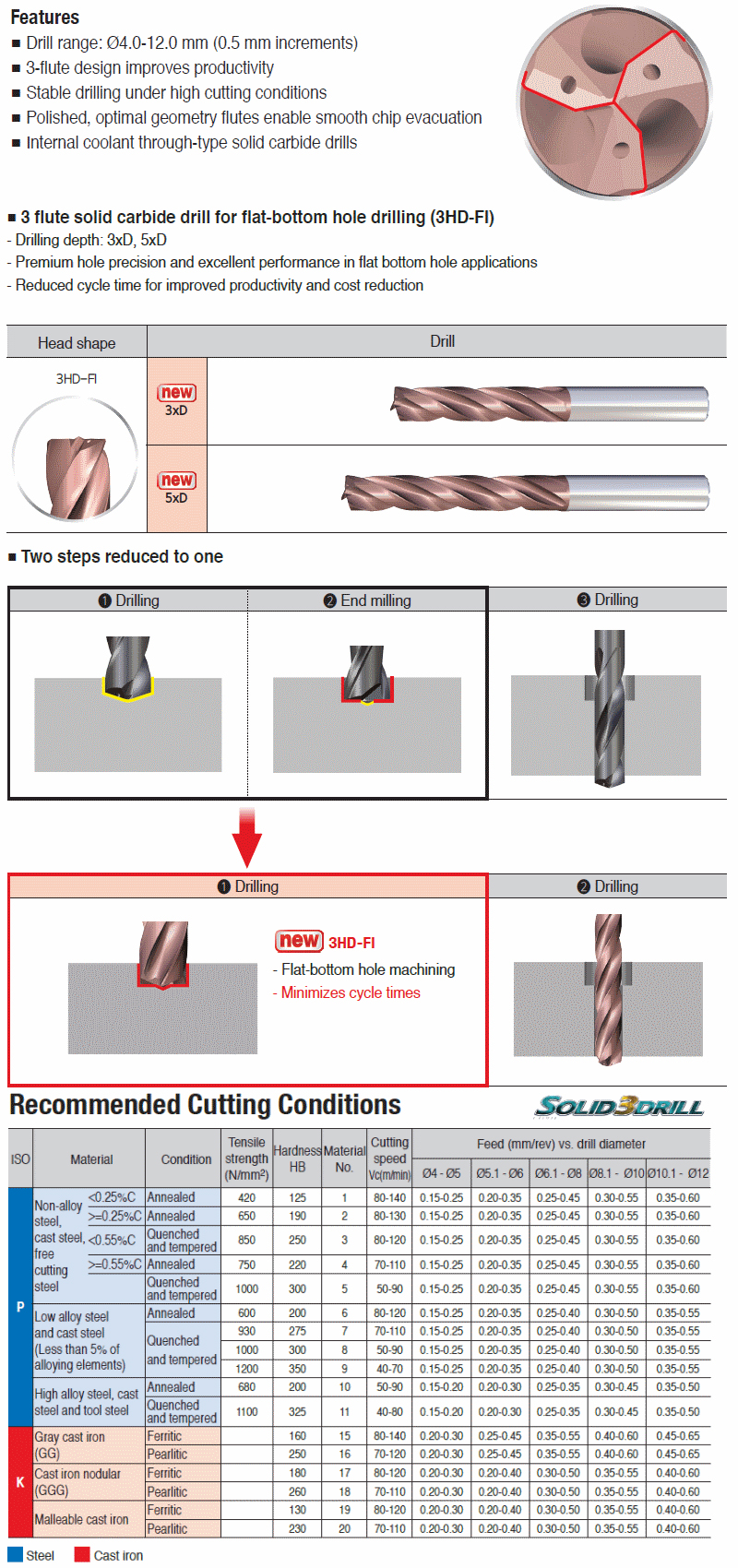

3 flute solid carbide drills with flat bottom geometry in drilling depth of 3xD for high productivity and flat-bottom hole drilling
| Drill Bit Size / Cutting Diameter (DC) | 12 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12 mm | Grade | TT5130 |
| Coating | Multi TiAlN | Measurement Type | Metric |

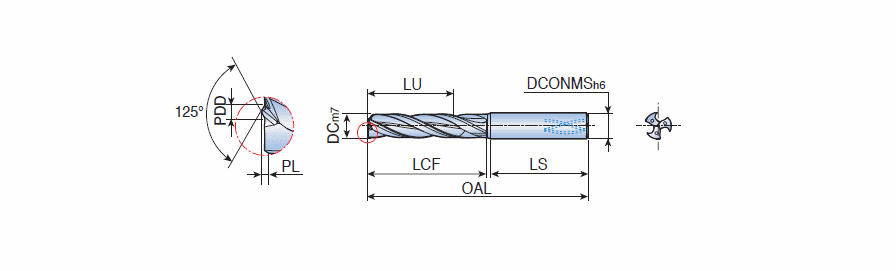

| Applicable Material | | Steel | Cast Iron | | Usable Length (LU) | 40 mm |
| Application | | Drilling | Tools for Swiss Machines | | Length Chip Flute (LCF) | 56 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Overall Length (OAL) | 102 mm |
| Point Length (PL) | 0.98 mm | Body Material | Carbide |
| Shank Length (LS) | 45 mm | Unit | M |
Product Features
| Family Description | 3 flute solid carbide drills with flat bottom geometry in drilling depth of 3xD for high productivity and flat-bottom hole drilling | COO | S.KOREA |
Shipping Info
Weight per item
0.1220
