3HD 040-029-06 FI5 TT5130

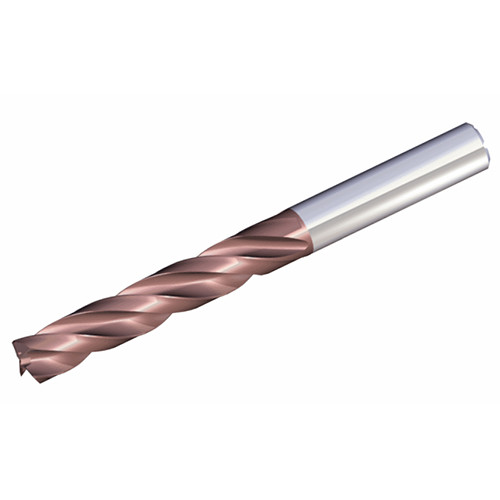

3 flute solid carbide drills with flat bottom geometry in drilling depth of 5xD for high productivity and flat-bottom hole drilling

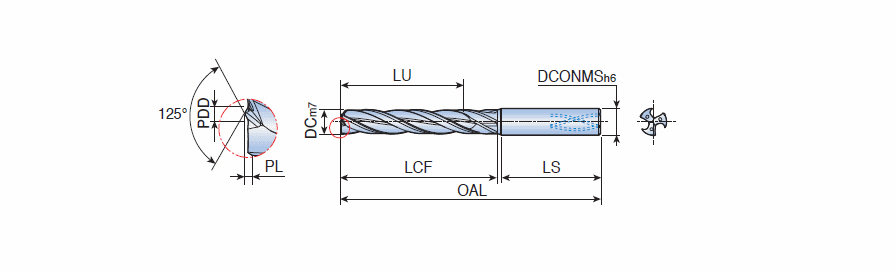

| Drill Bit Size / Cutting Diameter (DC) | 4 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4 mm | Grade | TT5130 |
| Coating | Multi TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | | Usable Length (LU) | 29 mm |
| Application | | Drilling | Tools for Swiss Machines | | Length Chip Flute (LCF) | 37 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 74 mm |
| Point Length (PL) | 0.43 mm | Body Material | Carbide |
| Shank Length (LS) | 35 mm | Unit | M |
Product Features
| Family Description | 3 flute solid carbide drills with flat bottom geometry in drilling depth of 5xD for high productivity and flat-bottom hole drilling | COO | S.KOREA |
Shipping Info
Weight per item
0.0215
